Model 35-16 4.8 x 1.8m Tilt Transporter Trailer | Fieldfare Trailer Centre

Availability: Call Fieldfare Trailers for Information 01980 611853

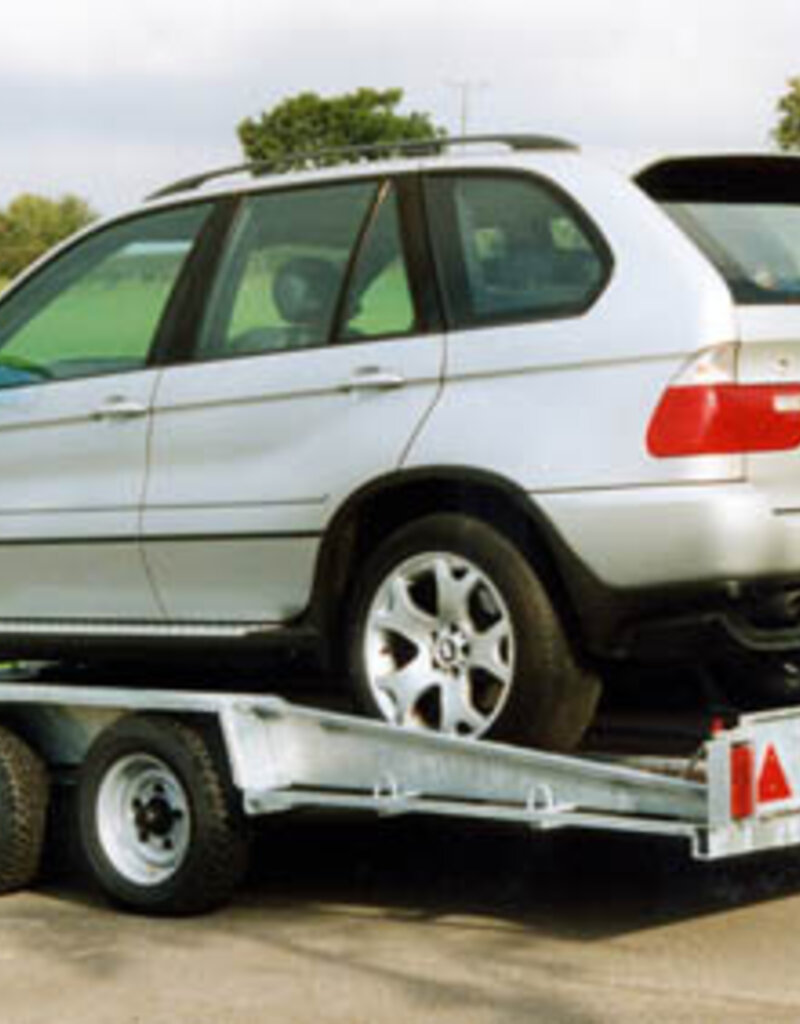

Model 35-16 is the heaviest trailer in Bateson Trailers range of hydraulic tilt transporter trailers. It has a carrying capacity of 2670Kg and is suitable for transporting larger 4x4s, plant and machinery. As with all of the hydraulic tilt transporters in this range. The 35-16 features full width axles with independent rubber suspension. Auto-reversing over-run brakes. Full road lights, front jockey wheel, spare wheel, hand winch, front adjustable wheel chock and 12 load securing points.

The trailer has a full floor panelled with 18mm phenol ply. Which also tilts back hydraulically to provide a low approach angle. Enabling vehicles with front spoilers and low ground clearance to be loaded with ease. The chassis is also hot dipped galvanised with integral mudguards. Which are strong enough to stand on and low enough to open car doors over. The body is tilted by means of a hydraulic cylinder and hand pump and can be lowered at a controlled rate.


Model 35-16 Trailer Specifications

Gross Weight KG 3500 Unladen Weight KG 830 Capacity 2670

Overall Dimensions in millimetres Length 6260 x Width 2280

Internal Dimensions in millimetres Length 4550 x Width 1870 x Height 200

Platform Height 430mm

Tyre Size 195-50 x 13 Tow Ball Height 500mm
