Model 27-16 Twin Axle 4.8 x 1.8m Transporter Trailer | Fieldfare Trailer Centre

Availability: Call Fieldfare Trailers for Information 01980 611853

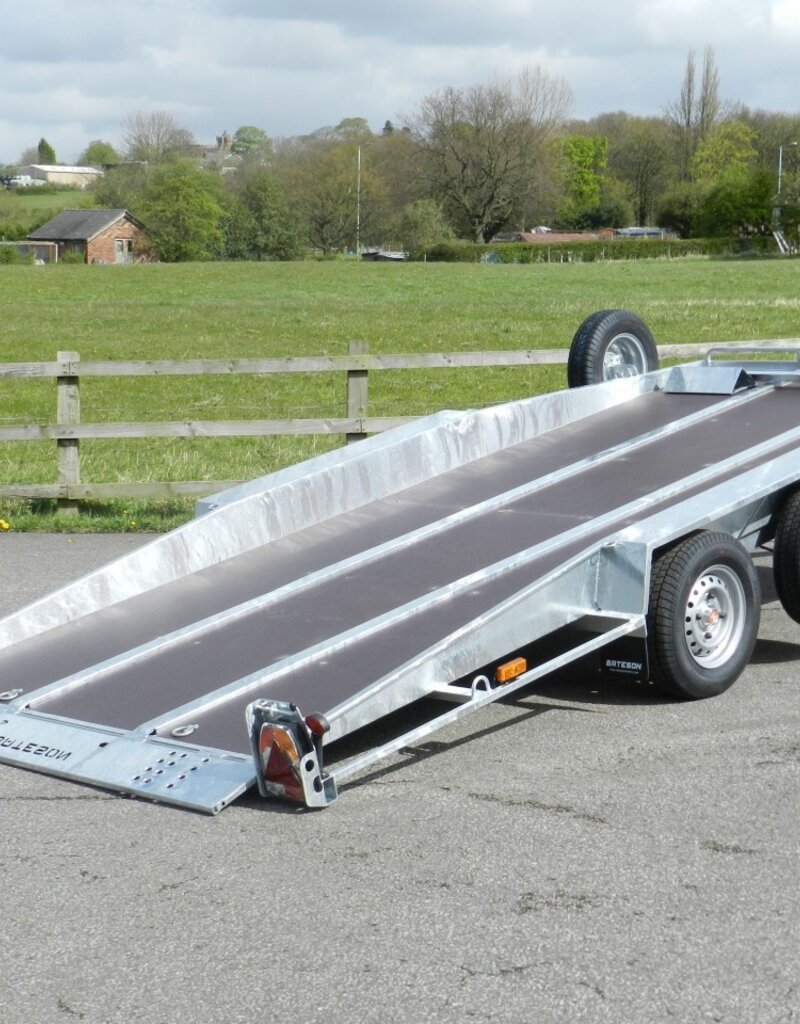

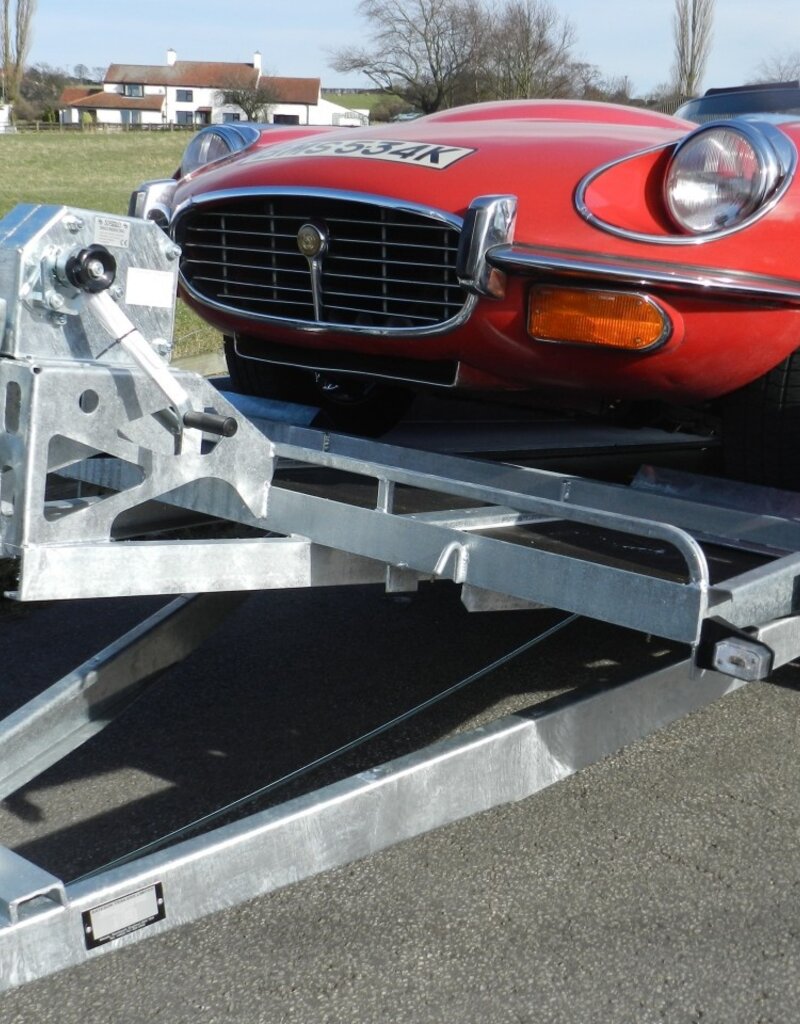

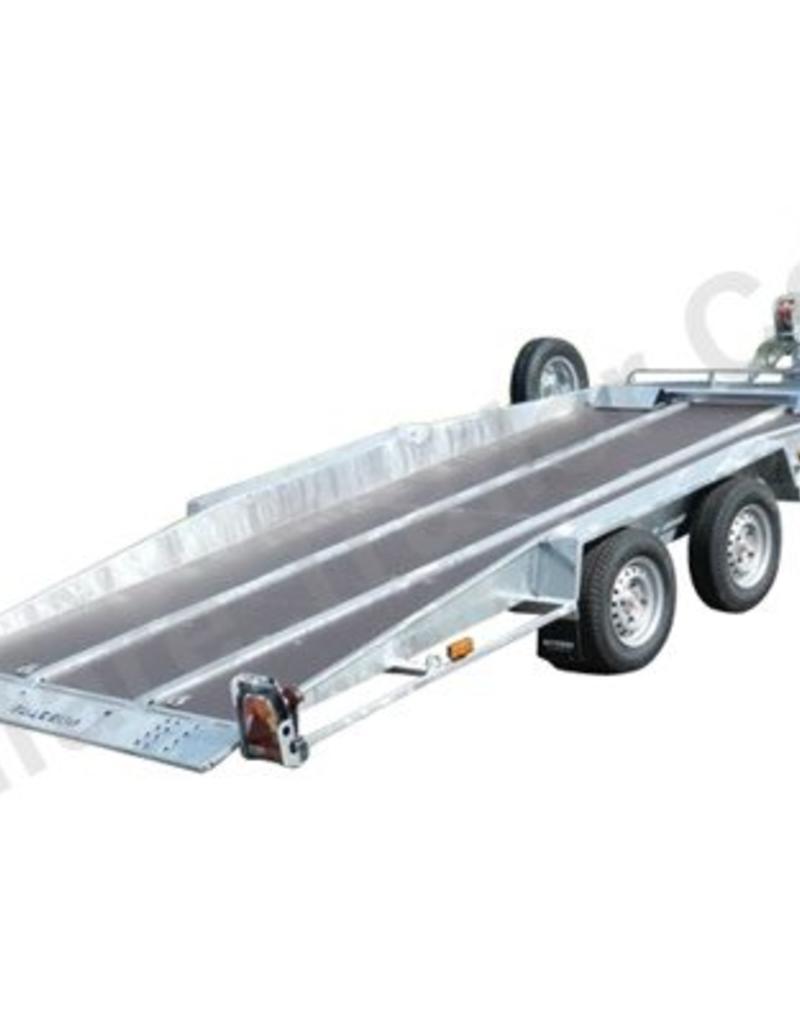

Model  27-16 is the most popular trailer in Bateson Trailers range of hydraulic tilt transporter trailers. It has a carrying capacity of 2035Kg and is suitable for transporting most cars and light commercial vehicles.

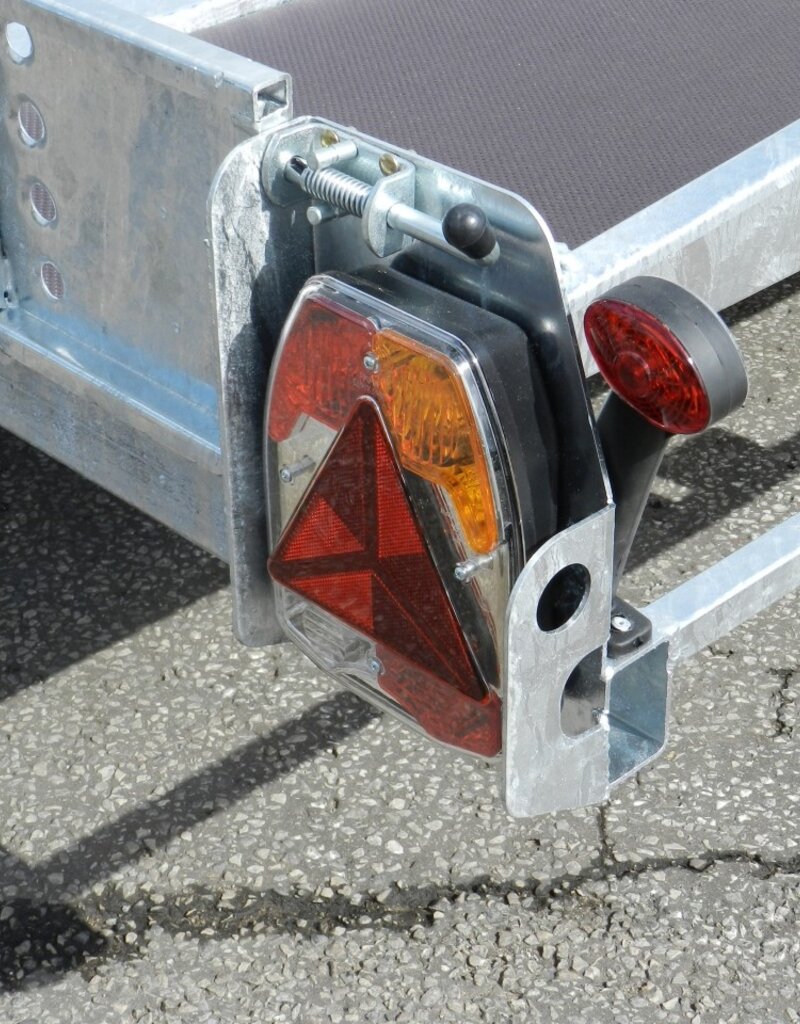

Also as with all of the hydraulic tilt transporters in this range. The 27-16 features as standard full width axles with independent rubber suspension. Auto-reversing over-run brakes, full road lights, front jockey wheel, spare wheel, hand winch, front adjustable wheel chock and 12 load securing points

The trailer has a full floor panelled with 18mm phenol ply. Which tilts back hydraulically to provide a low approach angle, enabling vehicles with front spoilers and low ground clearance to be loaded with ease. The chassis is hot dipped galvanised with integral mudguards. Which are strong enough to stand on and low enough to open car doors over. The body is tilted by means of a hydraulic cylinder and hand pump and can be lowered at a controlled rate.


Model 27-16 Trailer Specifications

Gross Weight KG 2750 Unladen Weight KG 715 Capacity 2035

Overall Dimensions in millimetres Length 6300 x Width 2280

Internal Dimensions in millimetres Length 4860 x Width 1870 x Height 200

Tyre Size 165 x 13 8ply
