Bateson 48LT Double Axle Livestock Trailer| Fieldfare Trailer Centre

Availability: Call Fieldfare Trailers for Information 01980 611853

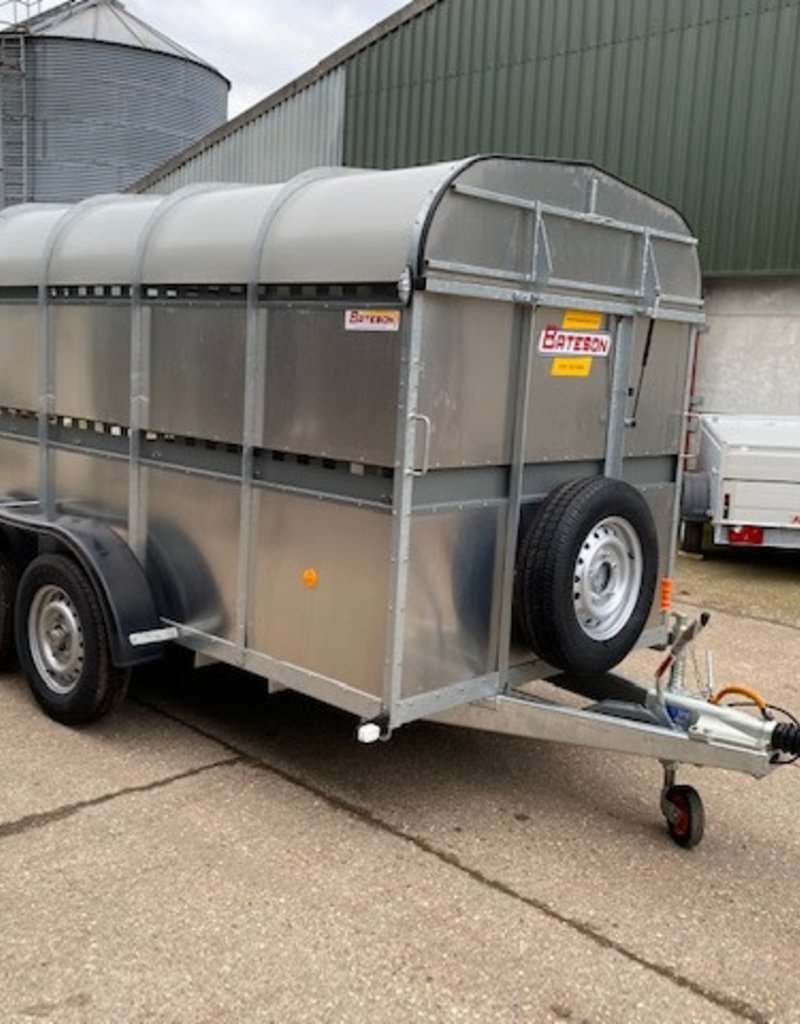

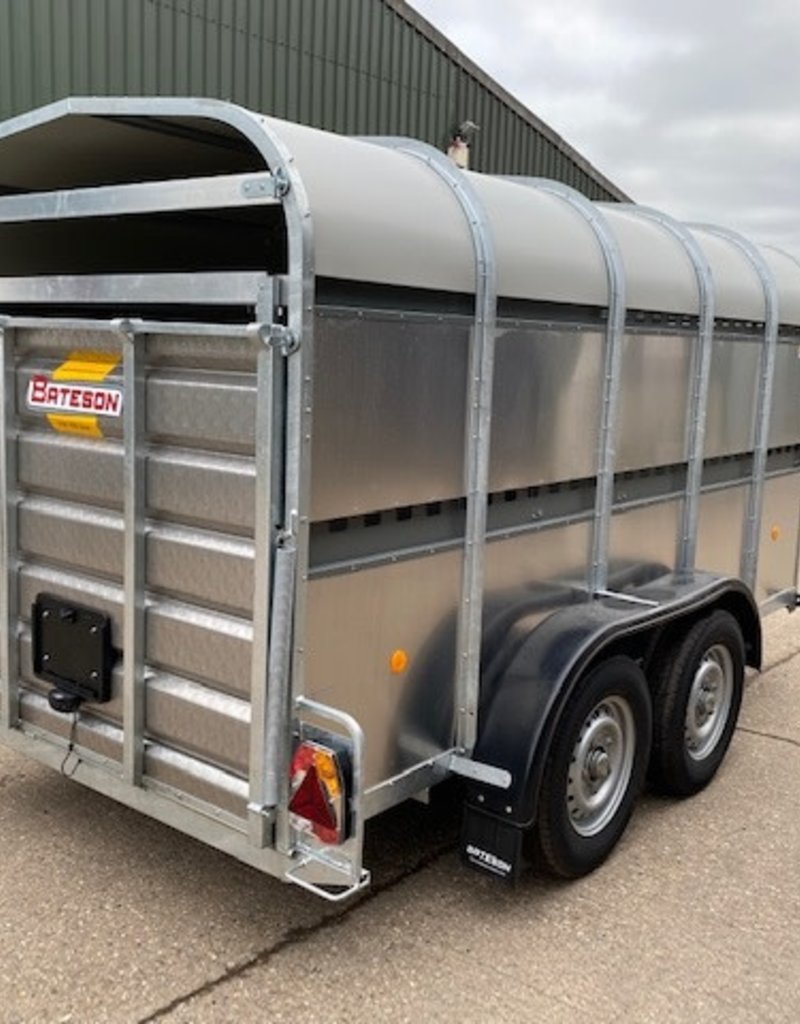

Model 48LT is Bateson largest Livestock Trailer fitted with Land Rover size 400mm wheels. We do not make larger models for safety and legal reasons. Furthermore this trailer loaded with livestock could exceed the 3500kg maximum gross weight that can be towed by a 4 x4. A larger trailer, particularly if fitted with three axles, would weigh much more and would have a corresponding reduction in payload

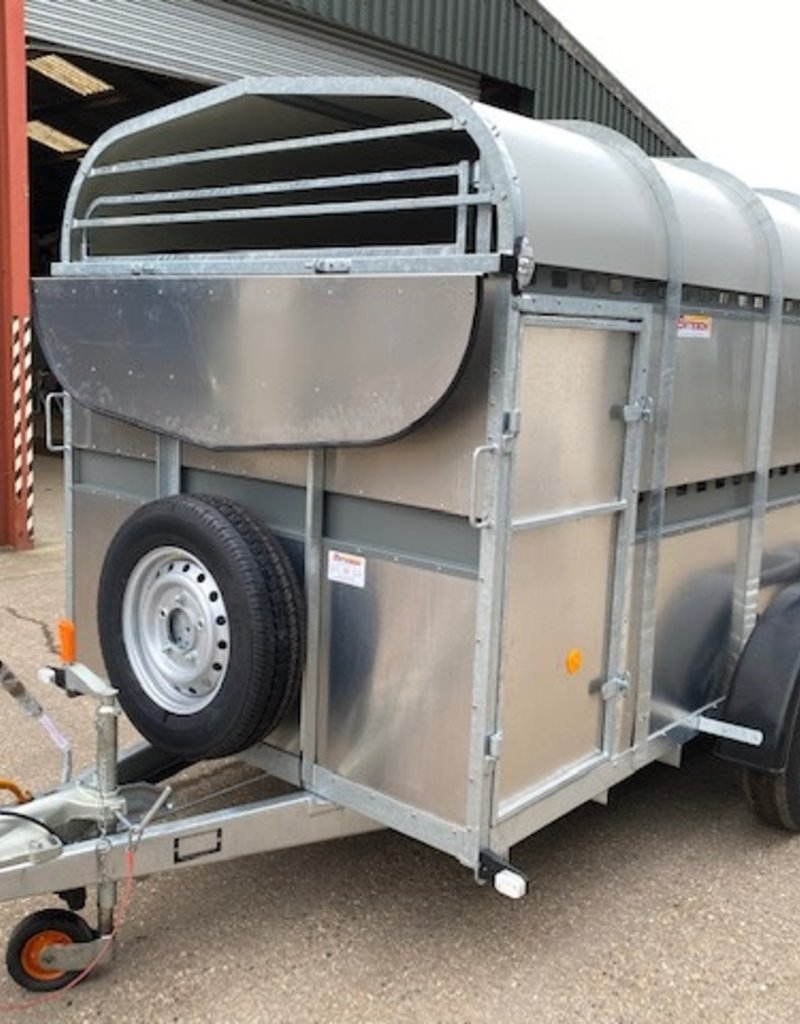

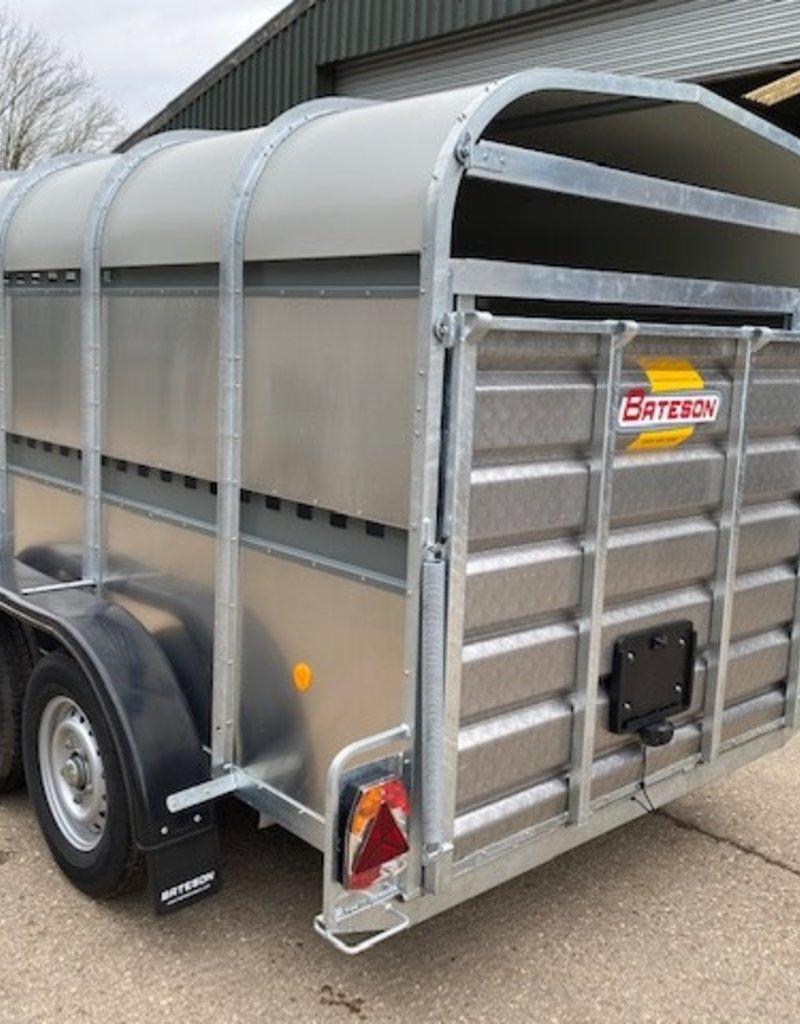

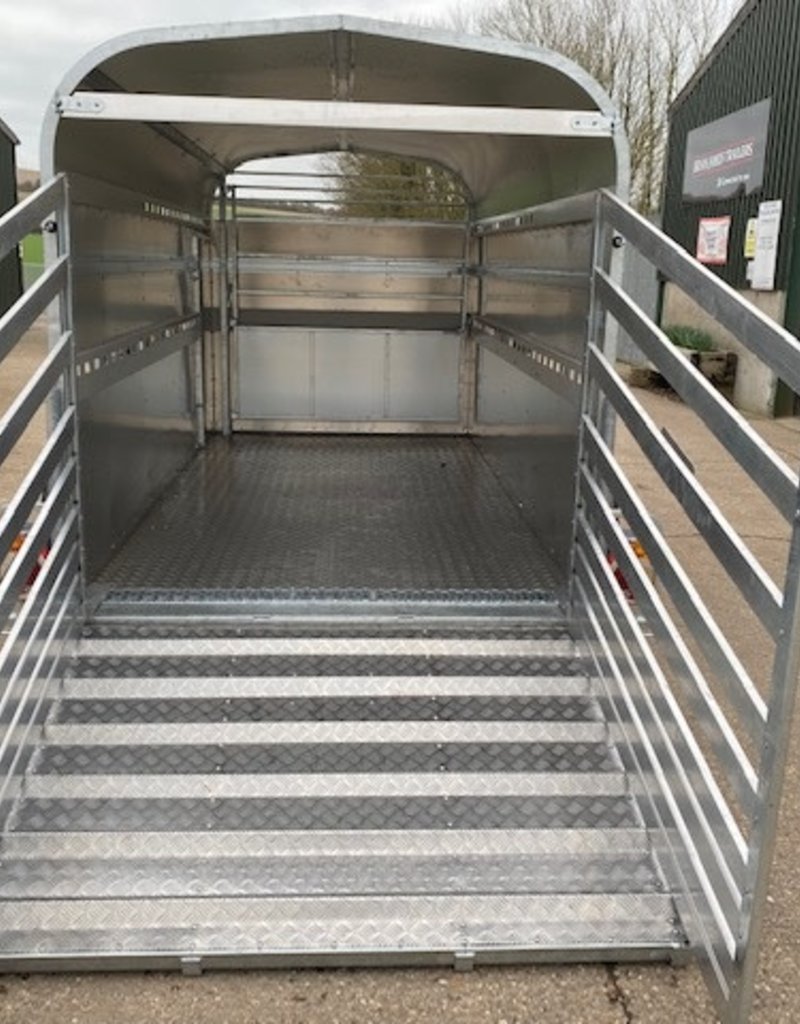

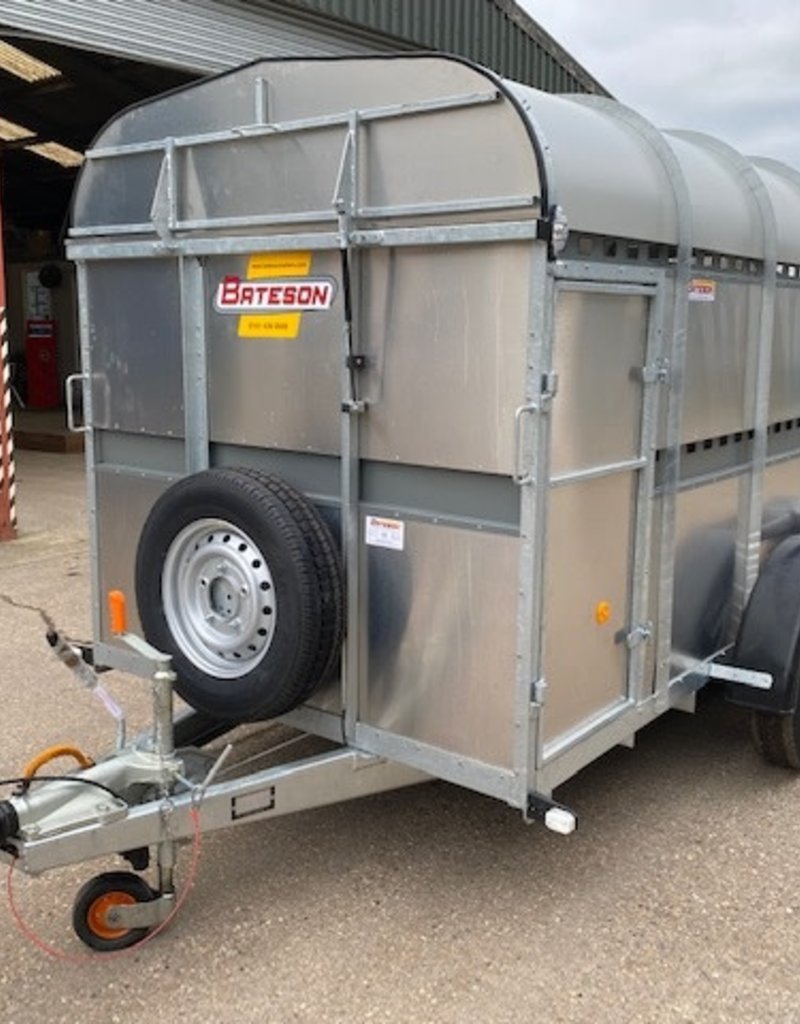

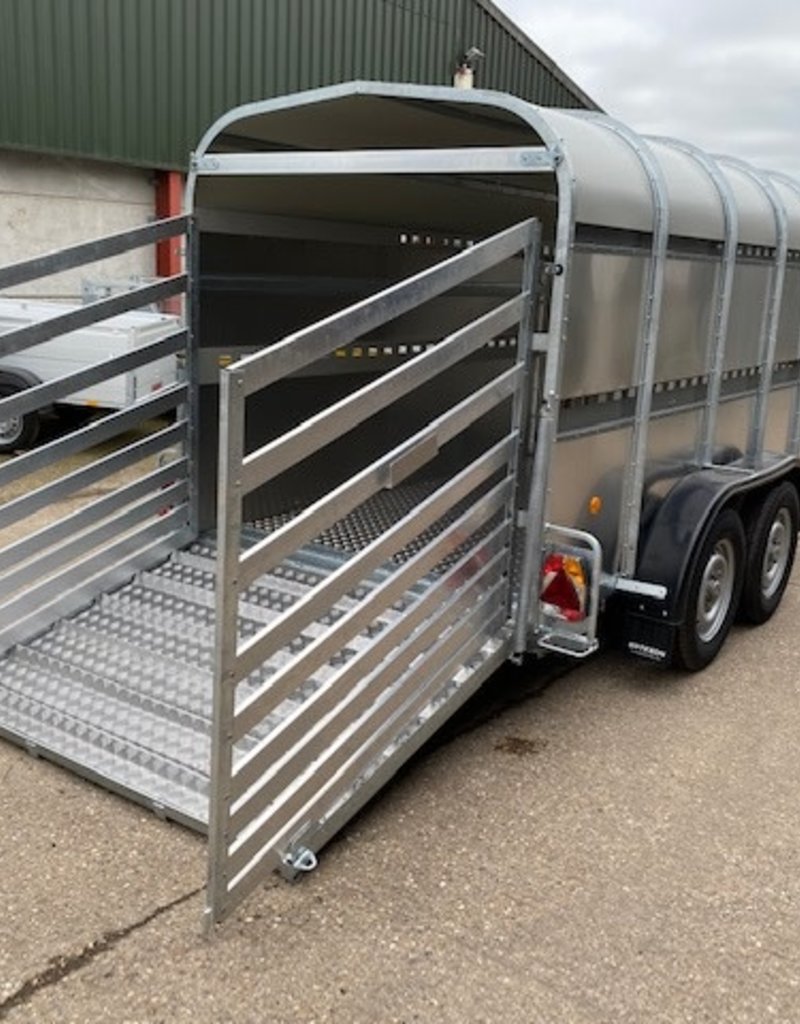

The 48LT is fitted with full width independent suspension axles and auto-reversing brakes. Alloy ramp side gates, side door, front jockey wheel, locking hitch, ramp lifting springs and a spare wheel are all supplied standard

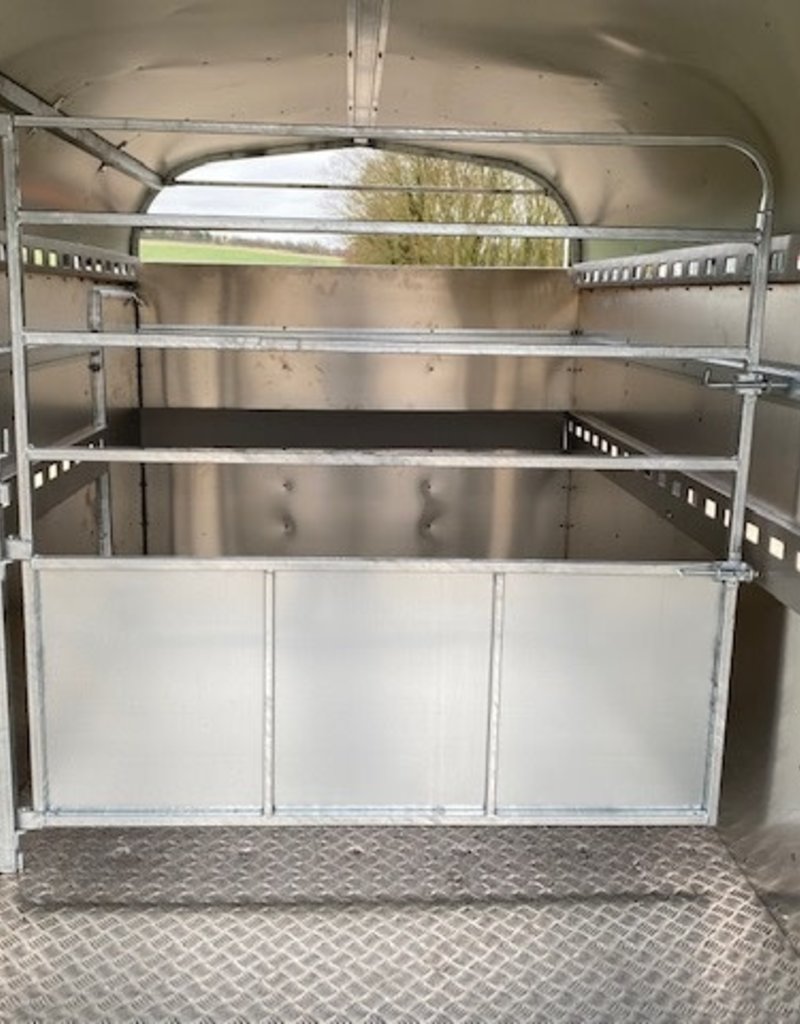

A cross division gate is also available as an option. Maximum permitted pen lengths are 3.6m for cattle, 3m for sheep and pigs and 2.4m for calves. Finally the 48LT is available with simple lift out decks with a rear ramp section. Fully folding decks are available on our Eurostock models.


Model 48LT Trailer Specifications

Gross Weight KG 3100 Unladen Weight KG 950 Capacity 2150

Overall Dimensions in millimetres Length 5000 x Width 2270 x Height 2320

Internal Dimensions in millimetres Length 3600 x Width 1730 x Height 1800

Tyre Size 205 x 16 Tow Ball Height 500mm

Trailer PDF
