Bateson 45LT Double Axle Livestock Trailer| Fieldfare Trailer Centre

£5,094.00
Availability: Call Fieldfare Trailers for Information 01980 611853

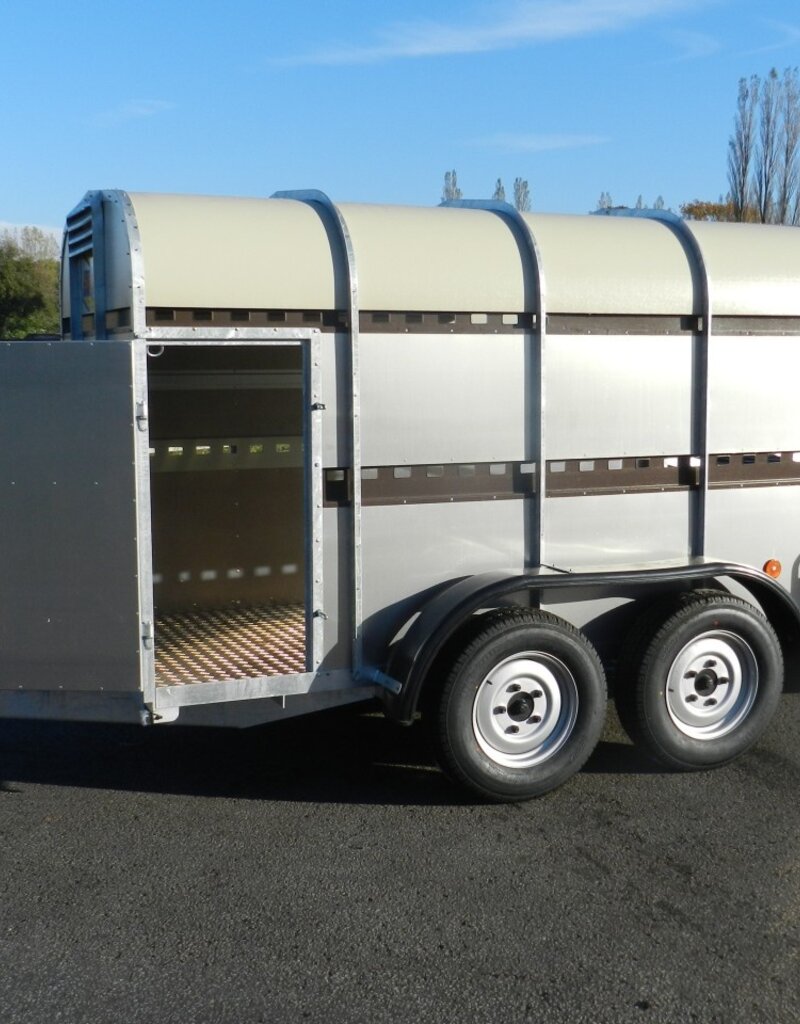

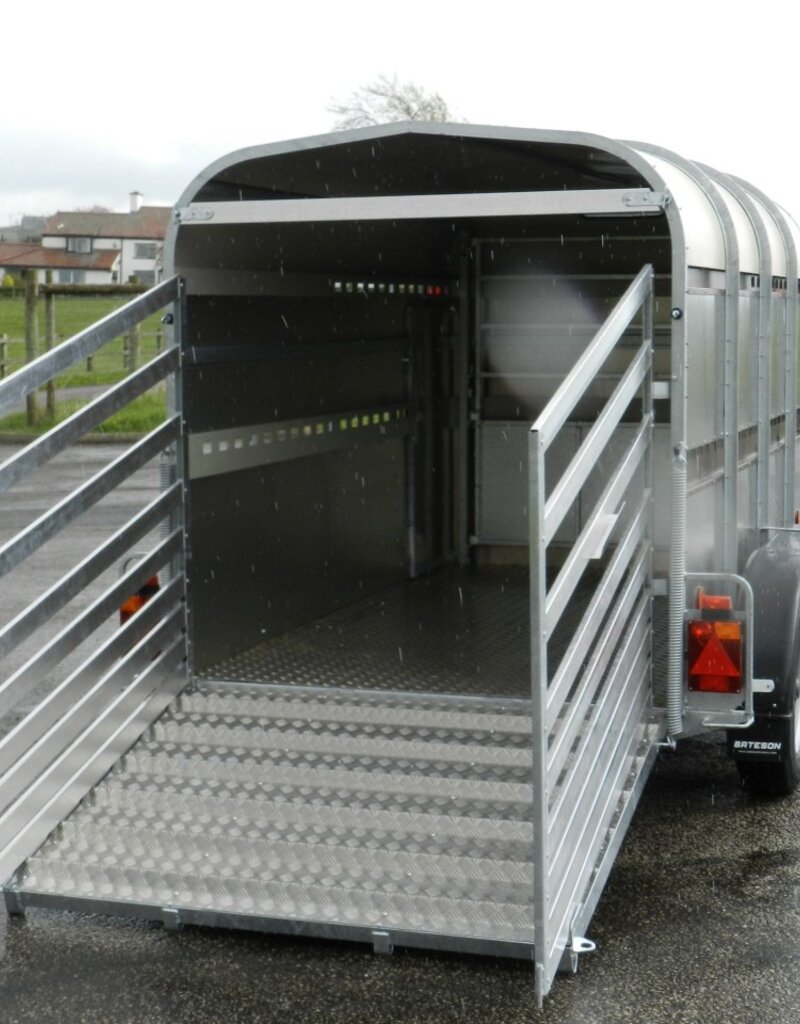

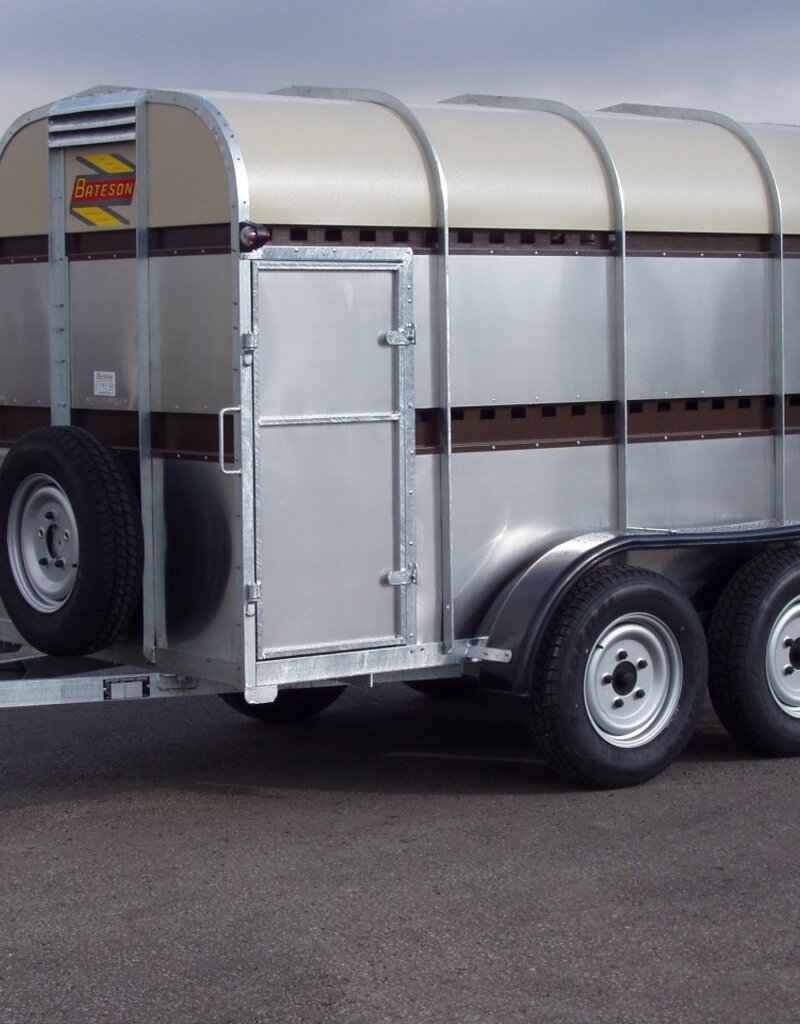

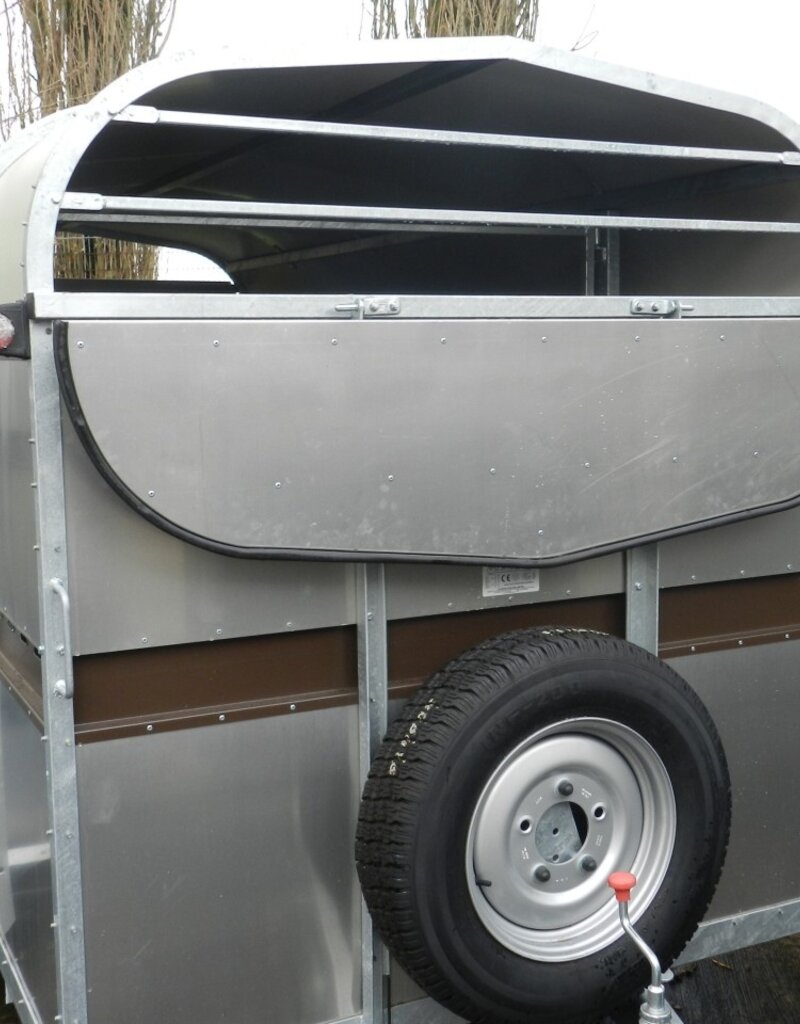

The Model 45LT trailer is a possibly the most popular Bateson Livestock Trailer designed for use with 4-wheel drive and similar vehicles. It will accommodate 3 or 4 cattle and not being too large, is very stable when the livestock move about All models have a hot dipped galvanised chassis and are panelled with 2mm toughened alloy sides and a plastic coated galvanised steel roof. The floor is 18mm Phenol coated panels covered with aluminium tread-plate and a folded tread-plate ramp door. The 45LT is fitted with full width independent suspension axles and auto-reversing brakes. A front jockey wheel, side door, ramp side gates, locking hitch, ramp lifting springs and a spare wheel are all standard

Furthermore a cross division gate is available as an option. The 45LT is also available with simple lift out decks with a rear ramp section

Maximum permitted pen lengths are 3.6m for cattle, 3m for sheep and pigs and 2.4 for calves.



Model 45LT Trailer Specifications

Gross Weight KG 3100 Unladen Weight KG 850 Capacity 2250

Overall Dimensions in millimetres Length 4400 x Width 2270 x Height 2320

Internal Dimensions in millimetres Length 3000 x Width 1730 x Height 1800

Tyre Size 205 x 16 Tow Ball Height 500mm
