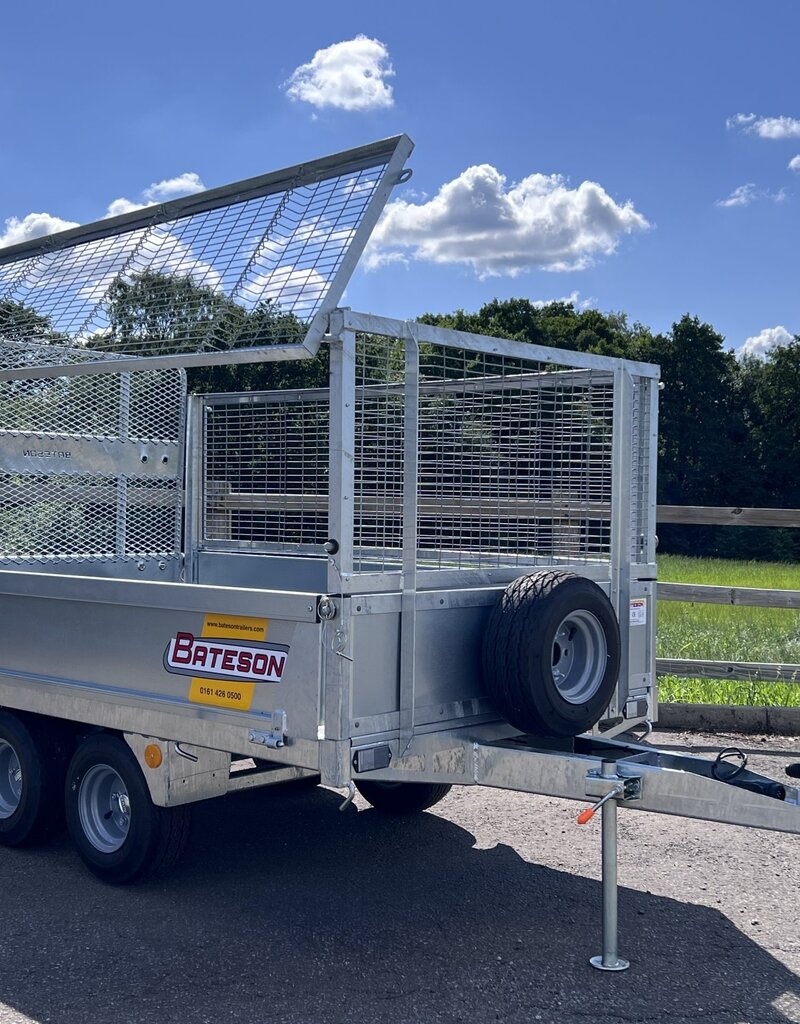

720 Bateson Unbraked Twin Axle Trailer | Fieldfare Trailer Centre

Article number: FTC720
Availability: Call Fieldfare Trailers for Information 01980 611853

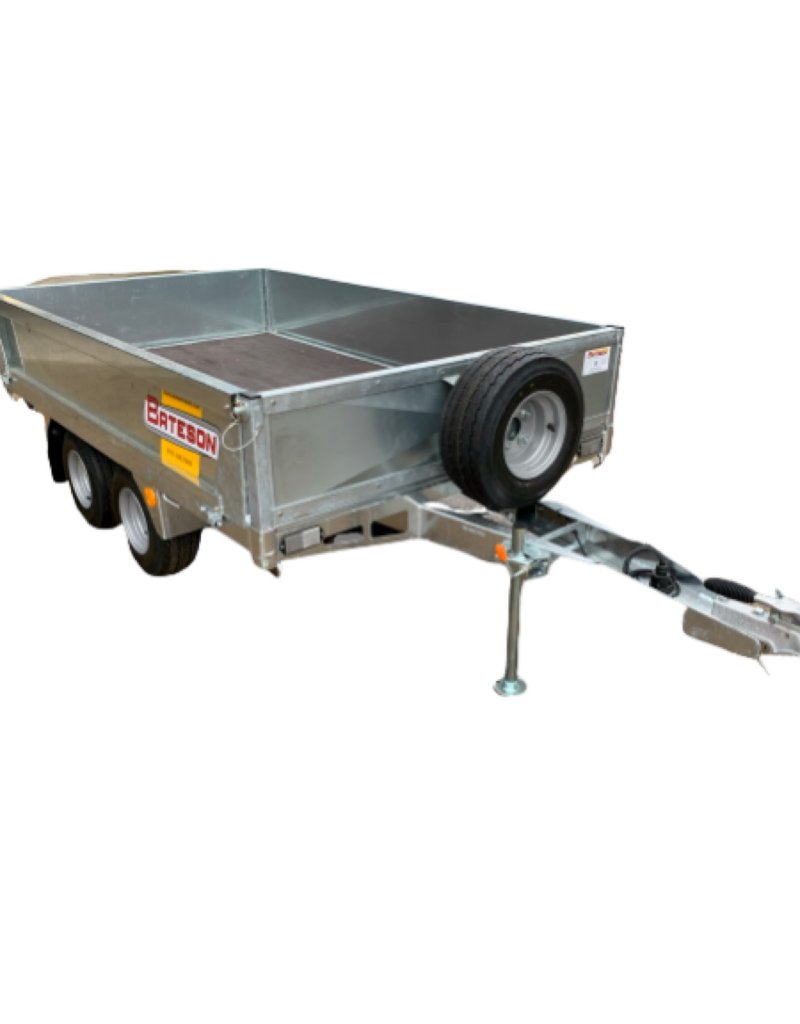

Bateson 720 trailer is a lightweight fully galvanised general purpose trailer, for use on or off road. With a gross weight of 750kg, it does not require overrun brakes and is therefore suitable for use behind most cars, quad bikes and small tractors. Also the construction is of a similar heavy duty standard to that of our larger trailers, with an 18mm non slip phenol coated floor and removable 30cm high hinged sides and tailboard folded from 2mm pre galvanised steel, with lift out front panel and rear corner posts Standard equipment includes full width axles with independent rubber suspension, cast 50 mm lockable ball hitch with an extended handle for ease of operation, front prop stand, rear lights, stop/tail light and indicators and 8 rope hooks. Now fitted with mudguards and mud flaps to comply with EU type approval.

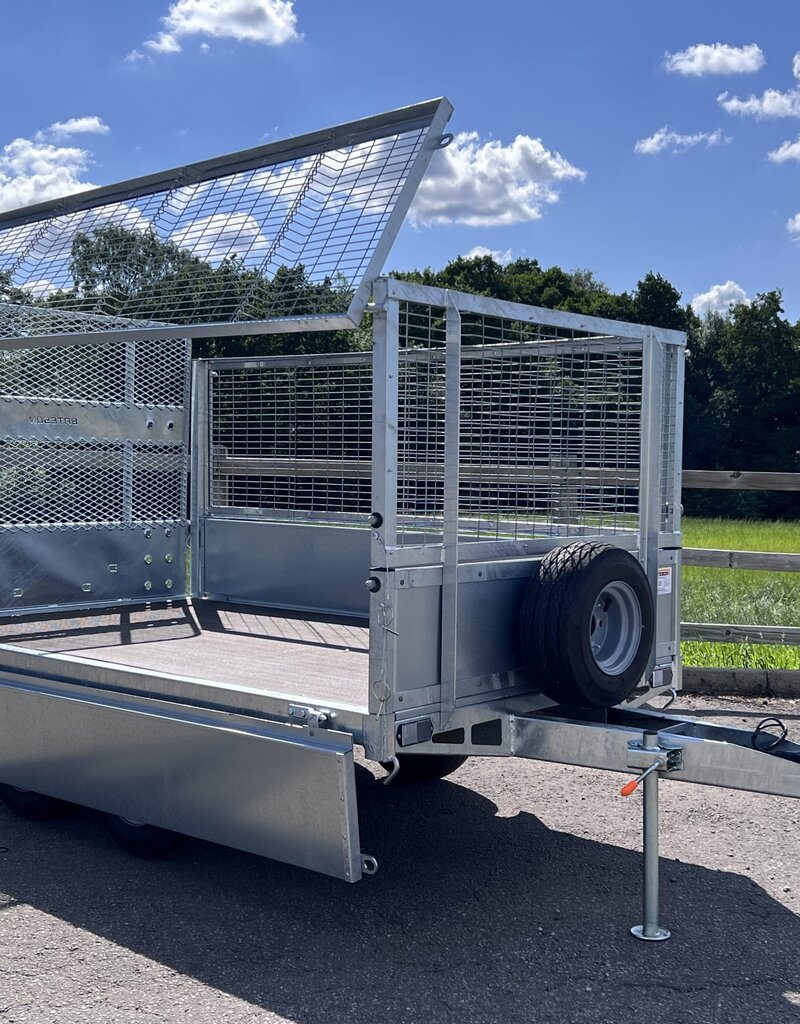

In addition there are many options including a ramp door for loading wheeled equipment and mesh extension sides. Furthermore the sides can be fully opened by hinging the side up and lowering the 30 cm hinged side

Model 720 Trailer Specifications

Gross Weight KG 750   Unladen Weight KG 223   Capacity 527

Overall Dimensions in millimetres Length 3150 x Width 1390

Internal Dimensions in millimetres Length 2100 x Width 1250 x Height 300

Platform Height 500mm

Tyre Size 16.5-6.5 x 8

Tow Ball Height 430mm

£1400 + Vat  £1680 Incl.  Vat, Spare wheel and barrel lock for Coupling

Optional Extras:

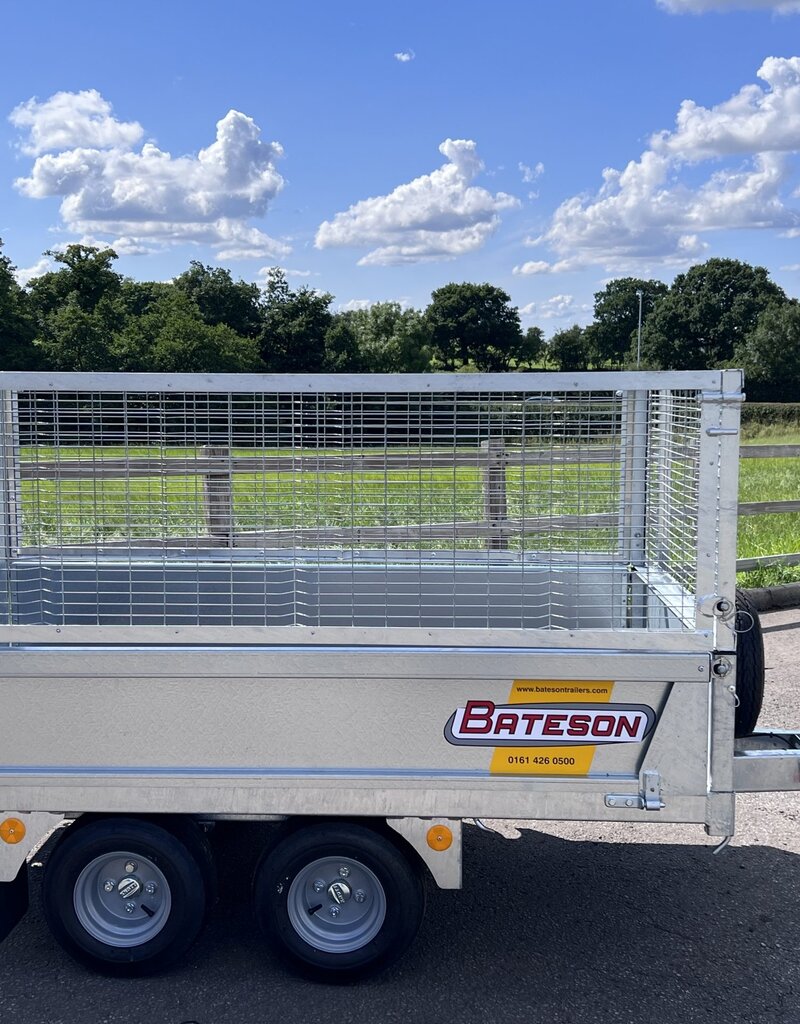

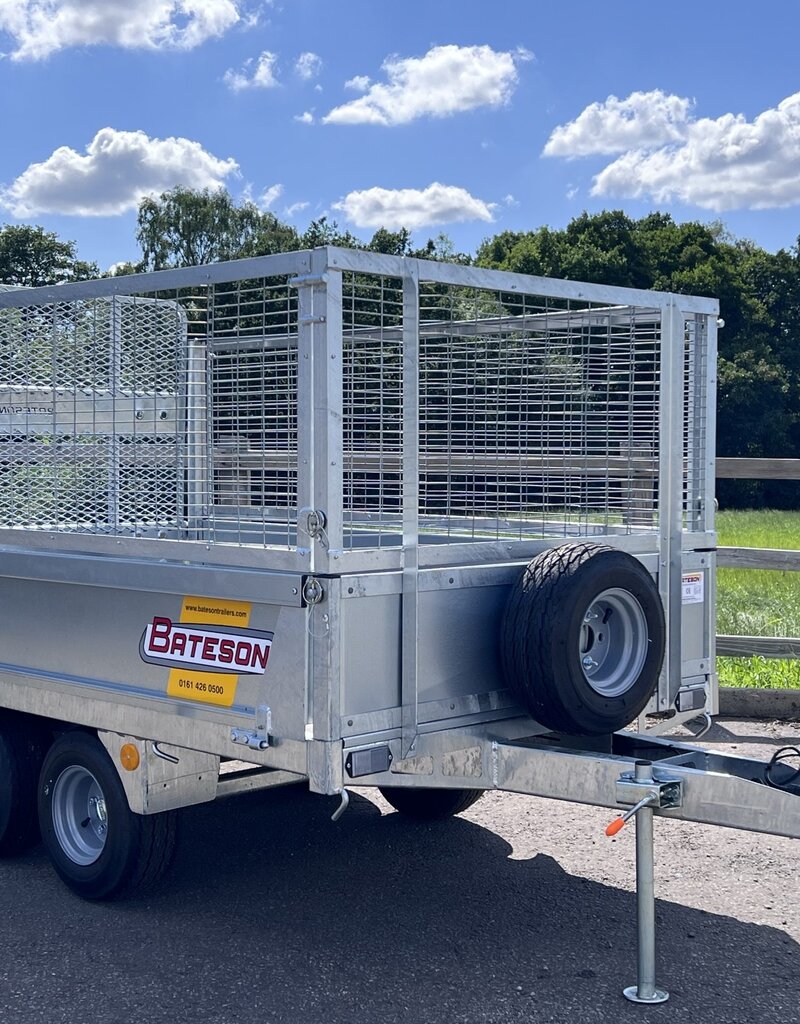

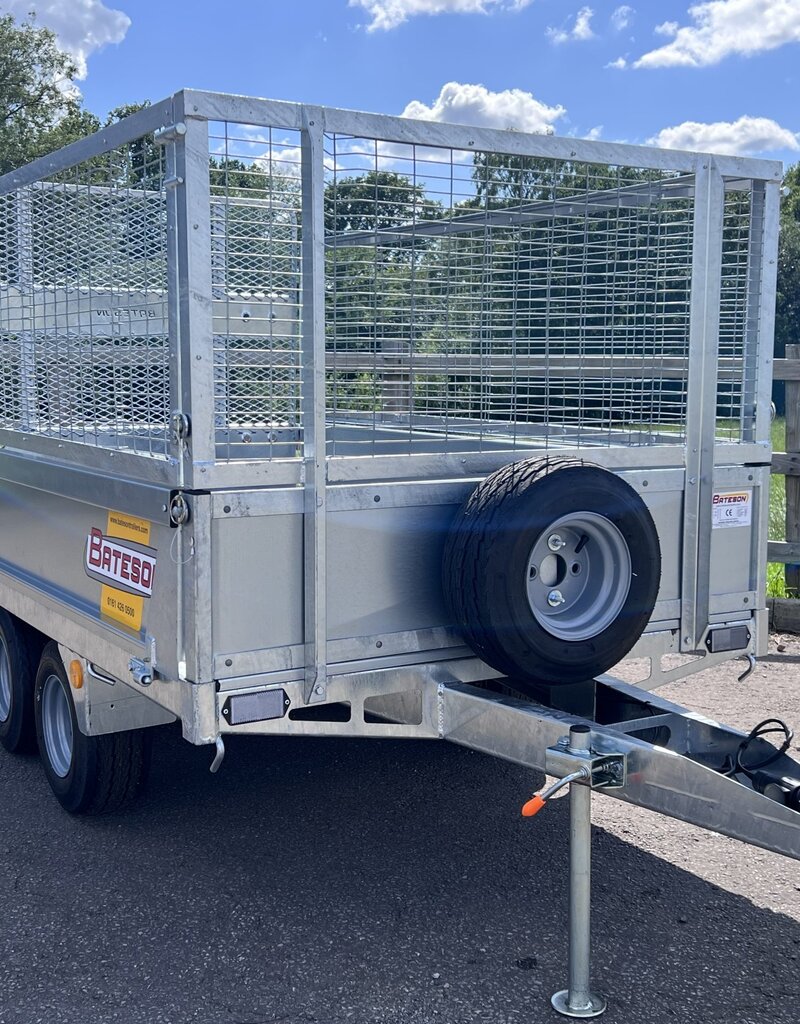

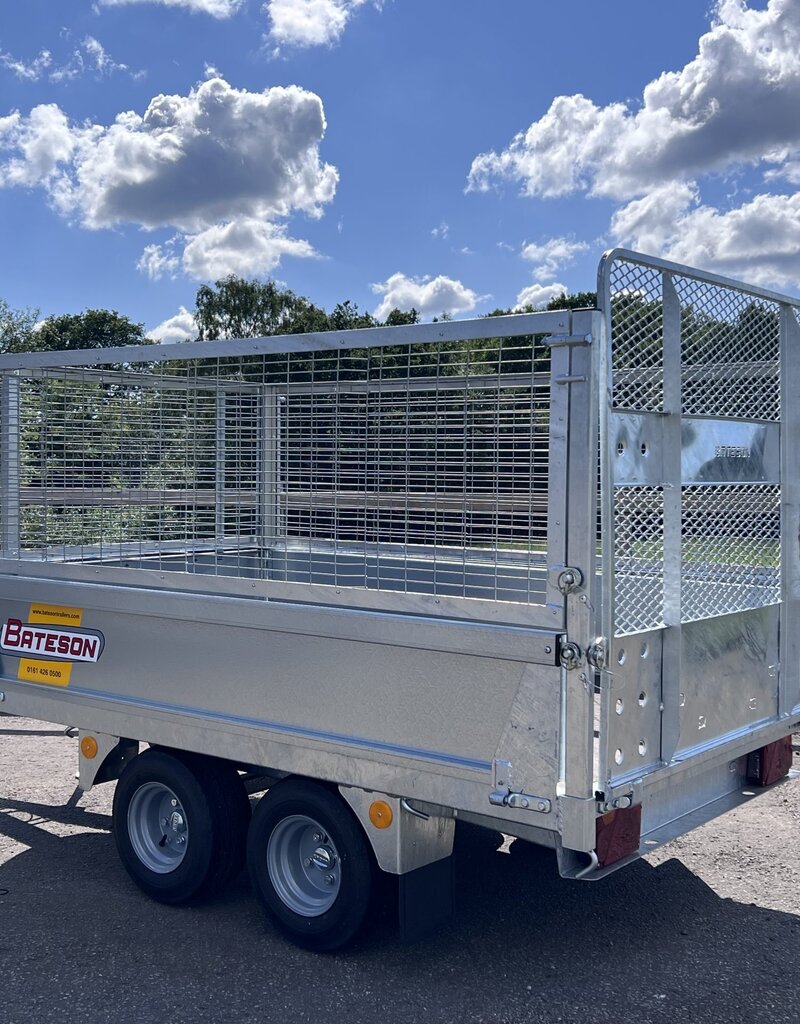

Mesh Extension Sides £310 + Vat

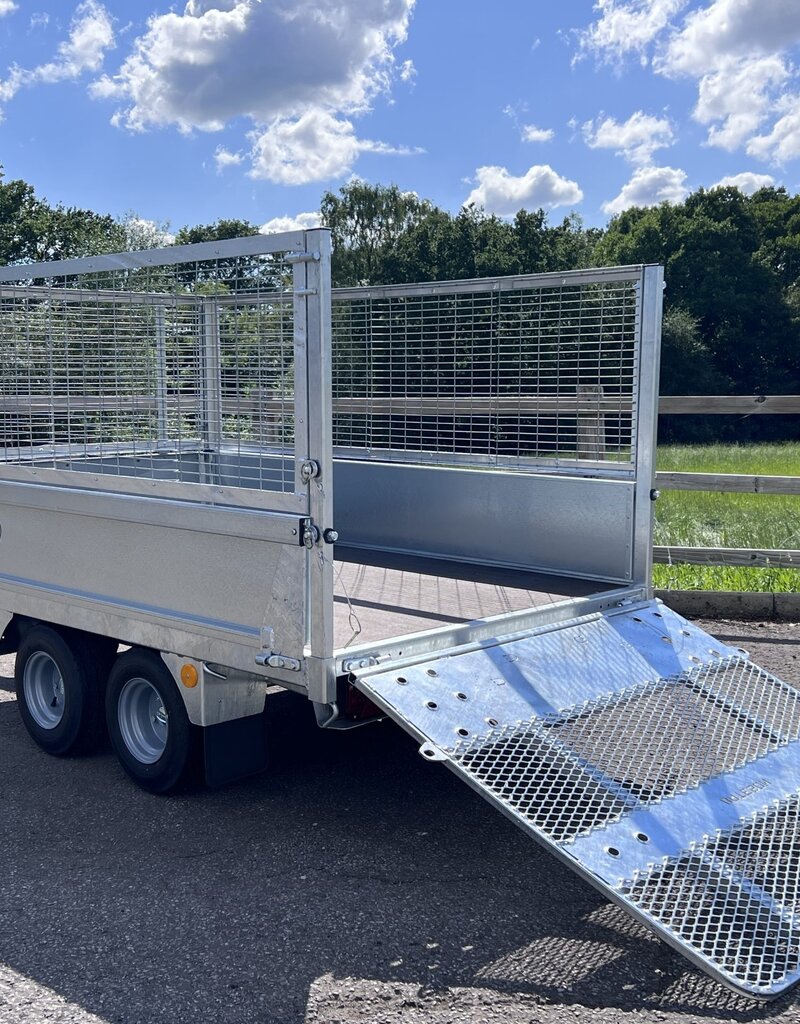

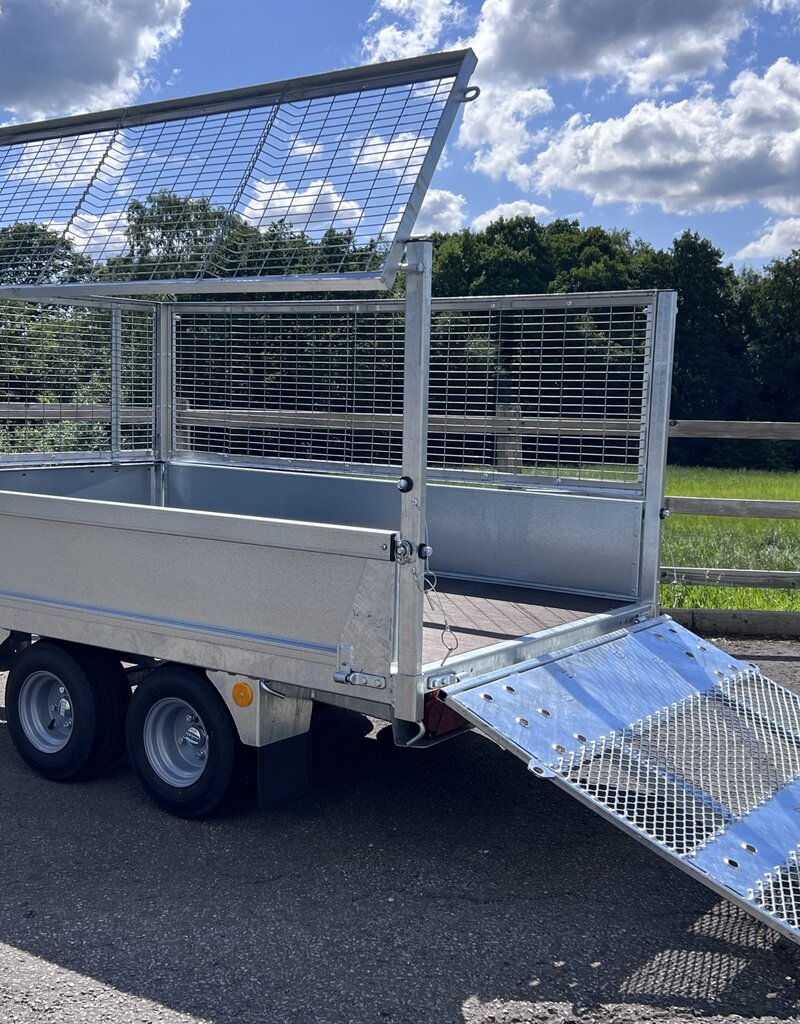

Ramp Tailgate (replacing standard tail panel from new) £110 + Vat
