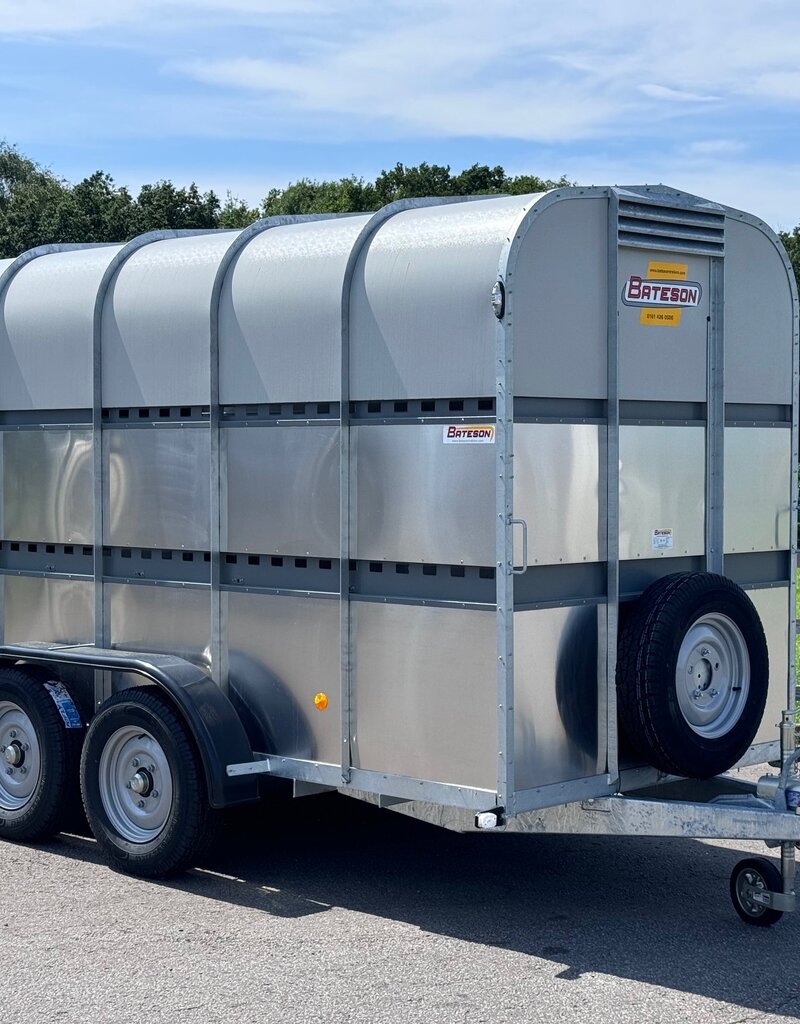

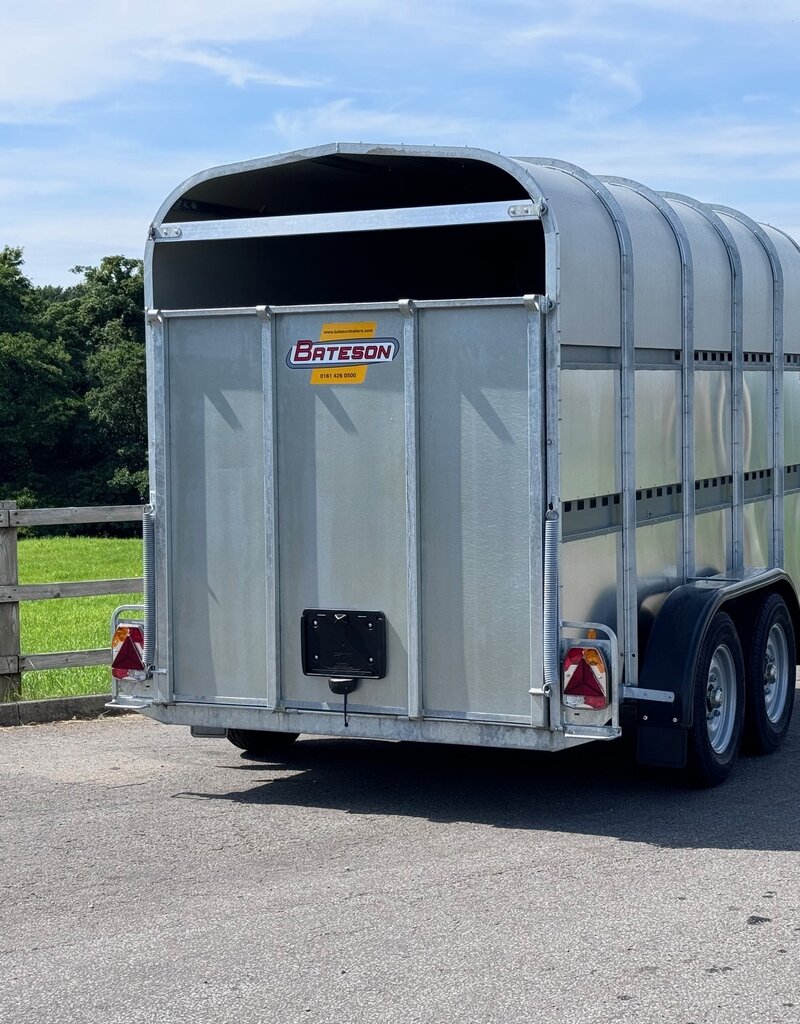

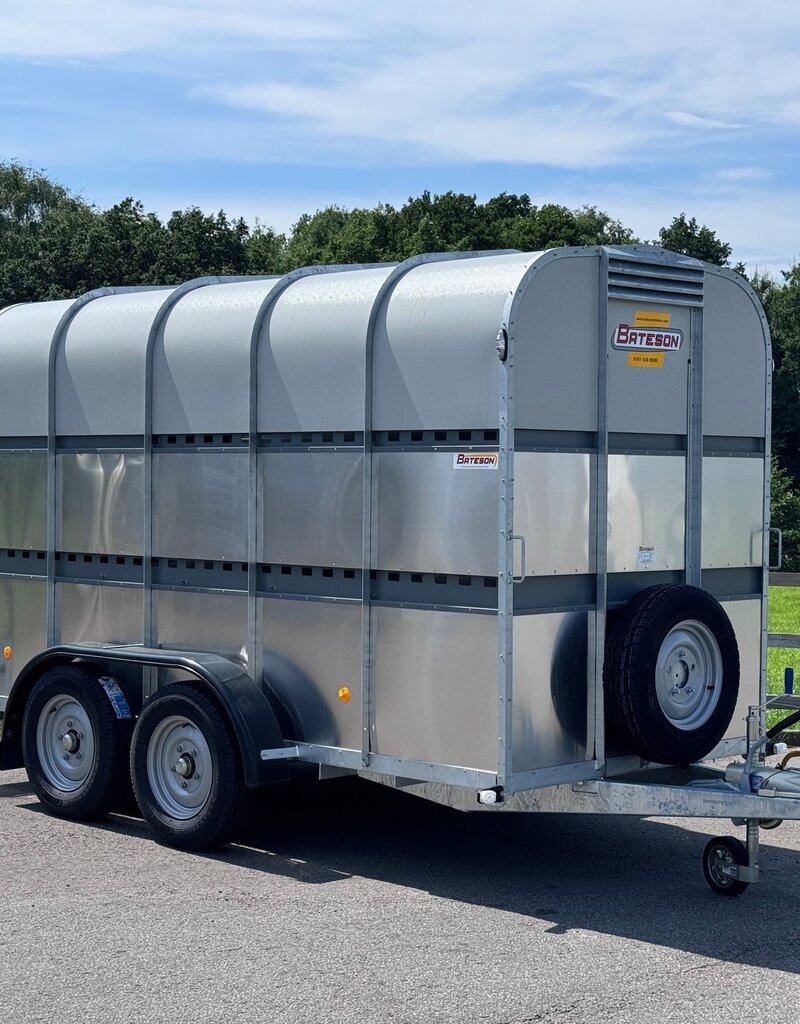

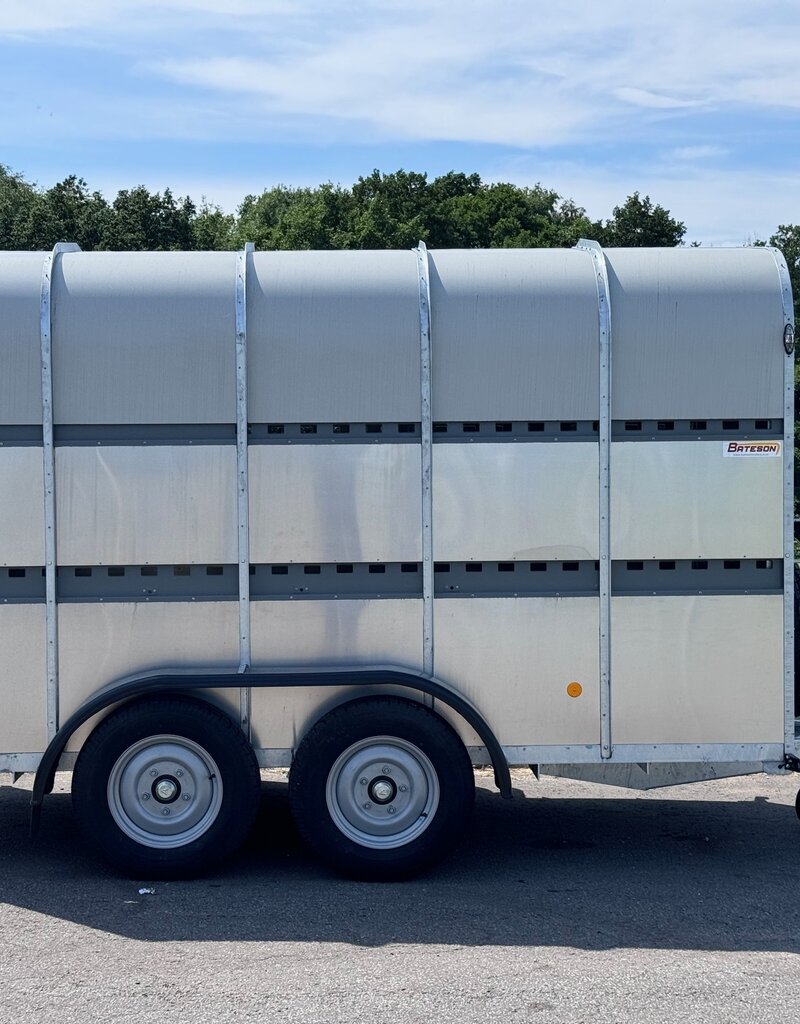

Bateson 48HB 12' x 5'8 Livestock Trailer for use with 4WD and larger vehicles (can accommodate horses)

12' x 5'8 Livestock Trailer for use with 4WD and larger vehicles (can accommodate horses)

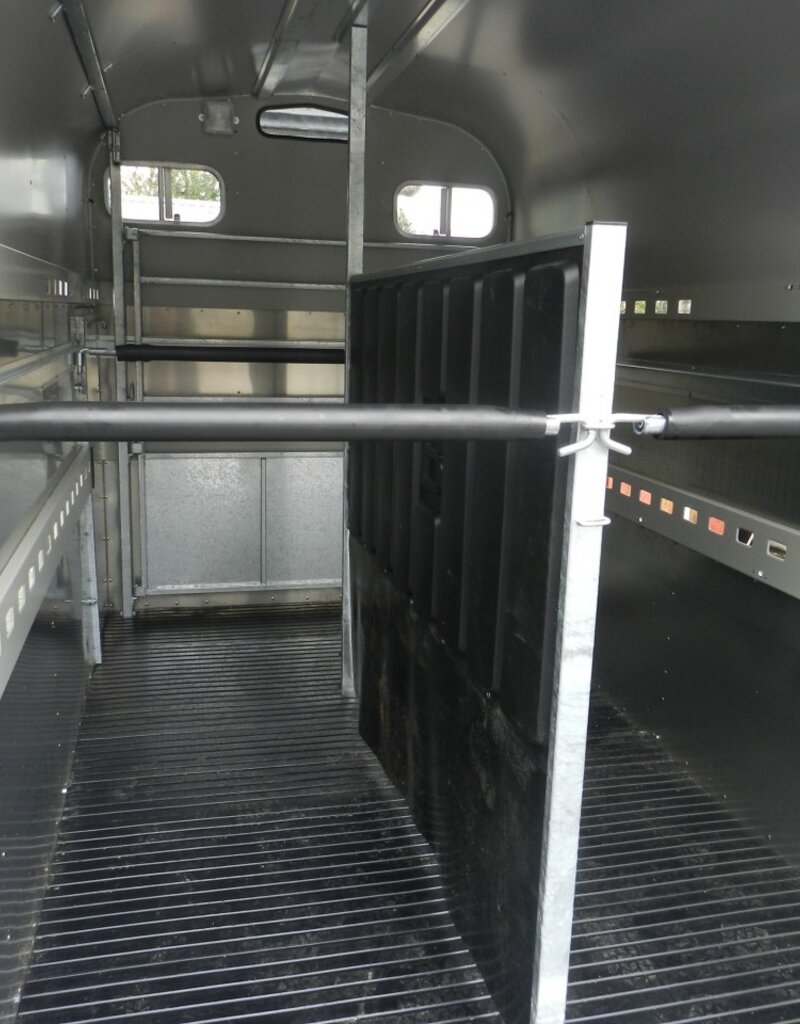

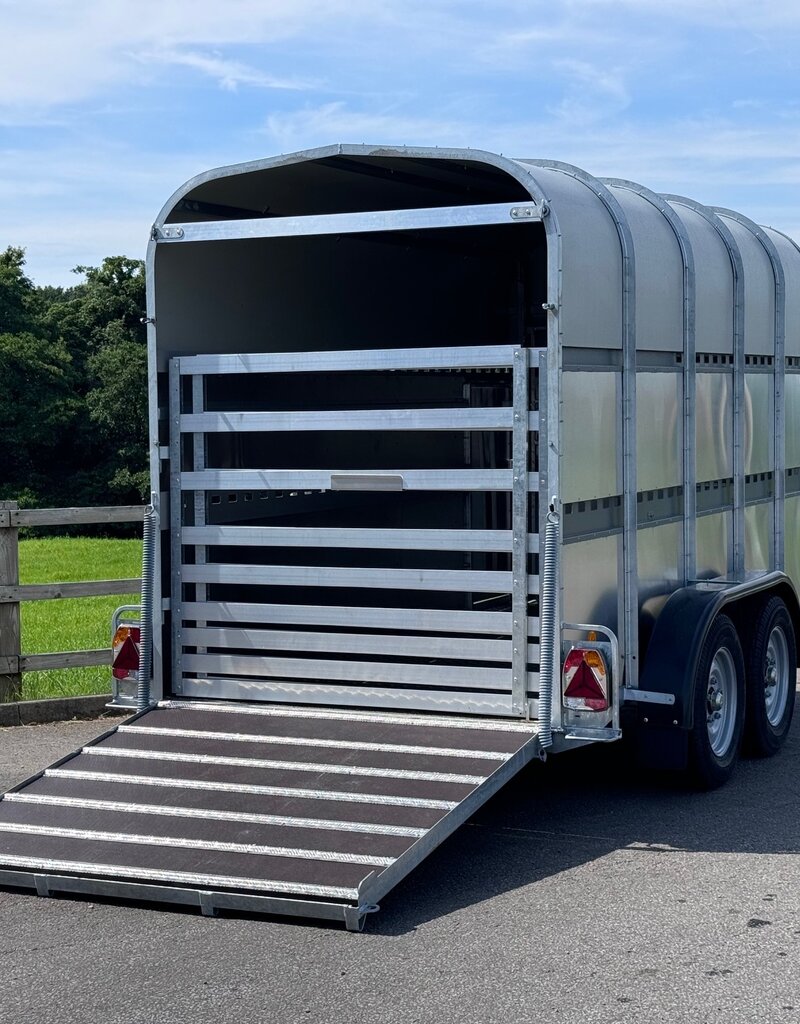

**Model shown with optional extra breast bar and divider**

Price £6755 + vat

Model 48HB is our largest Livestock Trailer with increased headroom (7') to enable it to be used for horses. The 48HB is supplied with a timber ramp as standard. A breast bar, divider rail and removable rubber floor mats are available as options.

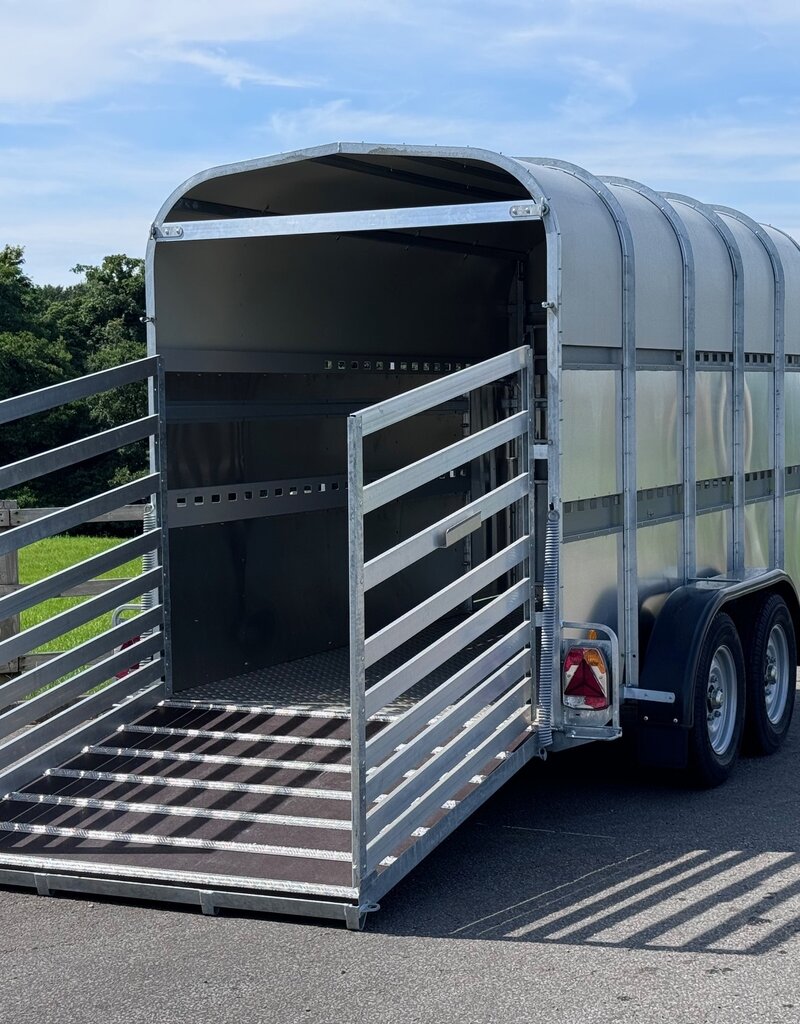

All models have a hot dipped galvanised chassis and are panelled with 2mm toughened alloy sides and a plastic coated galvanised steel roof. The floor is 18mm Phenol coated panels covered with aluminium tread-plate and a phenol coated timber ramp is fitted suisable for both cattle and horses but a folded tread-plate ramp door can be ftted as an option.

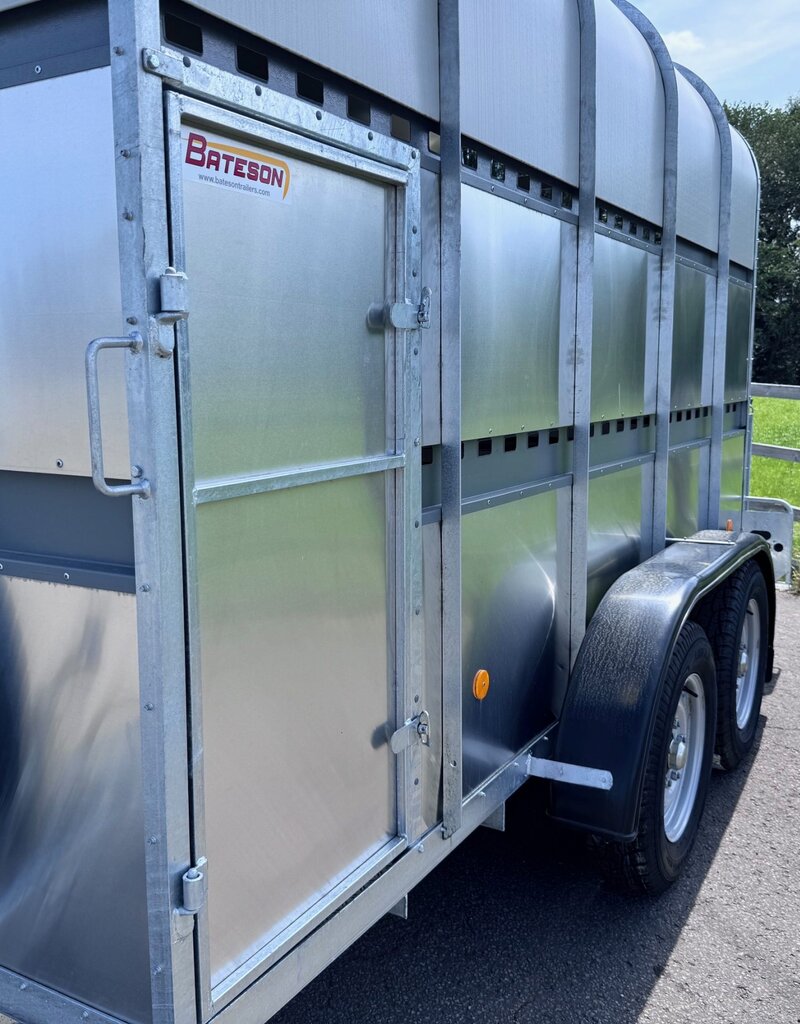

The 48HB is fitted with full width independent suspension axles and auto-reversing brakes. Standard equipment includes a front jockey wheel, side door, alloy ramp side gates, locking hitch, ramp lifting springs and a spare wheel.

A cross division gate is available as an option. Maximum permitted pen lengths are 12' for cattle, 10' for sheep and pigs and 8' for calves.The 48HB is available with simple lift out sheep decks with a rear ramp section.

A centre partion with padded breast bars and lift out rubber floor mats are available as options for use with horses.

Trailer Weight And Capacity (KG)

Gross Weight

3100

Unladen Weight

950

Capacity

2150

Overall Dimensions (MM)

Length

5000

Width

2270

Height

2620

Internal Dimensions (MM)

Length

3600

Width

1710

Height

2100

Additional Information

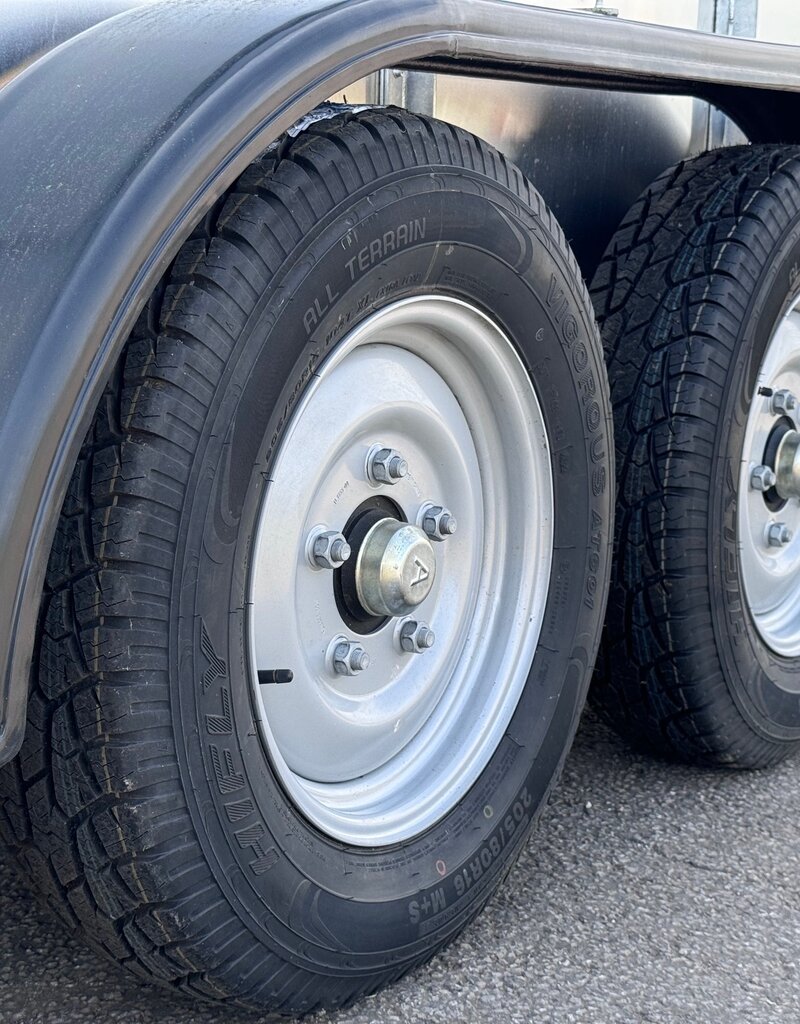

Tyre Size

205 x 16

Tow Ball Height

500mm
