| Article number: | 360V |
| Availability: | Available |

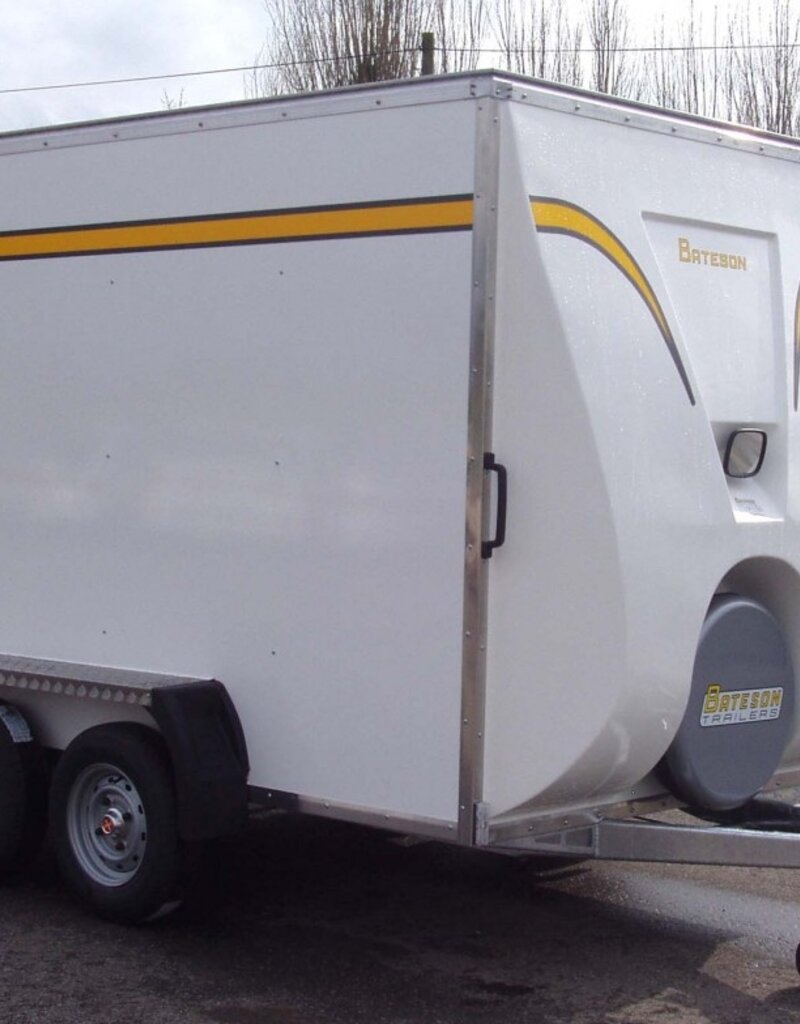

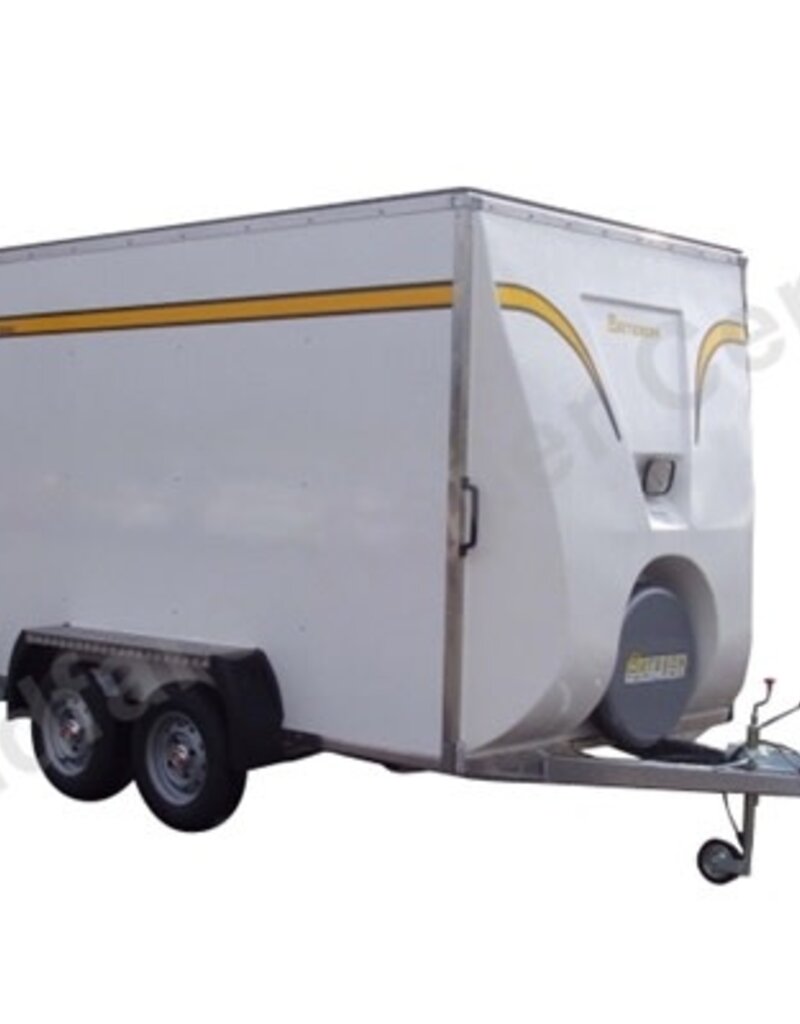

12' x 5' x 6' 2000 kg. Enclosed van trailer
Price £6230 + Vat includes delivery to dealer and rear ramp
The 360V the longest 5' wide van trailer, with a greater volume but still within the overall width of many towing vehicles. It has a galvanised steel chassis and internal steel frame with strong lashing rings just above the floor level. The sides are protected inside by galvanised steel load securing rails.
The trailer is panelled with high gloss glass fibre plywood laminate one piece side sheets, with 18mm phenol coated none slip floor and a translucent glass fibre roof.
The aerodynamic from is glass fibre with an 18mm ply internal bulkhead which also provides storage pockets for load securing equipment. The front incorporates a spare wheel and carrier and an ingenious mirror which allows the trailer hitch and vehicle tow ball to be seen by the driver during coupling, eliminating misalignment and damaged bumpers.
Auto-reversing over-run brakes are fitted as standard with a cast coupling and integral jockey wheel. Avonride softride axles are fitted as standard giving a smooth ride even when unladen. The 360V has galvanised axles and the mudguards are sealed to the body and have special damage resistant end mouldings. The rear lamps incorporate all functions in one stylish unit and are mounted on the steel brackets wired with a waterproof junction box to a standard type N 7 pin plug.
The rear door can be wither the standard roof mounted aluminium roller shutter or optional double side hinged van door with a container type lock or a heavy duty spring assisted full height ramp (allow approximately 50kg increase in unladen weight).
Trailer Weight And Capacity (KG)
Gross Weight
2000
Unladen Weight
650
Capacity
1350
Overall Dimensions (MM)
Length
4880
Width
2030
Height
2270
Internal Dimensions (MM)
Length
3560
Width
1480
Height
1710
Additional Information
Tyre Size
165 x 13
Tow Ball Height
400mm
