| Article number: | 35MD |
| Availability: | Available |
3500 kg Excavator trailer for machines up to 2775 kg

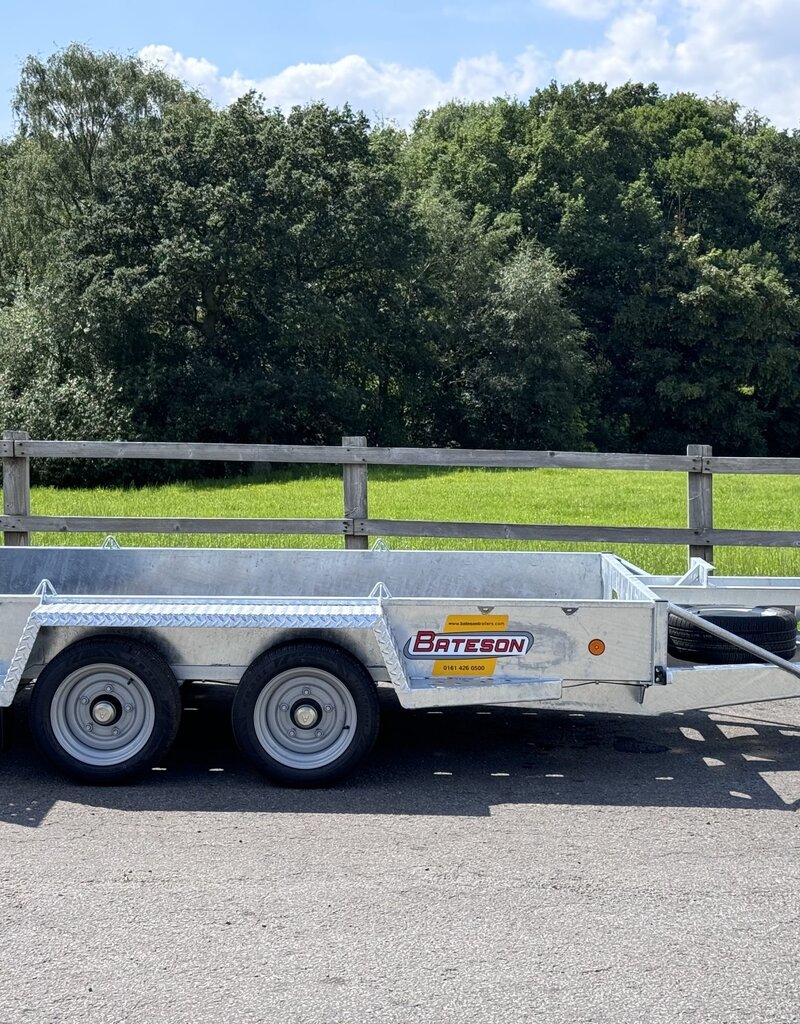

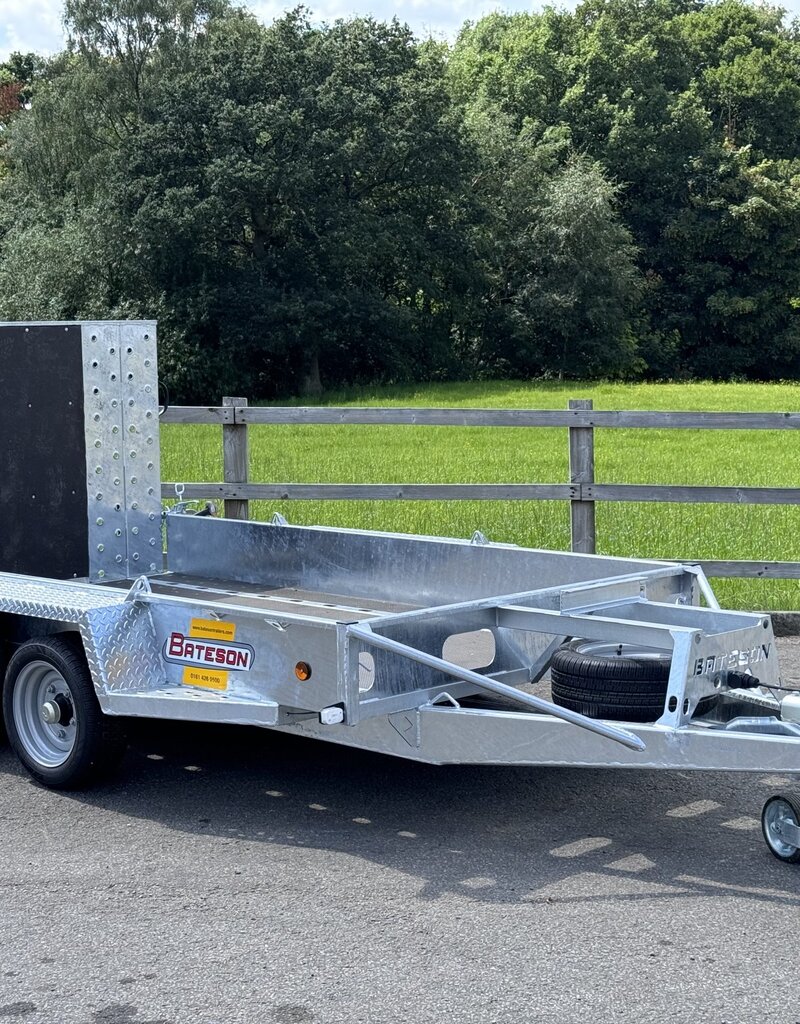

Model shown as standard
Price £4130 + Vat includes delivery to dealer charge

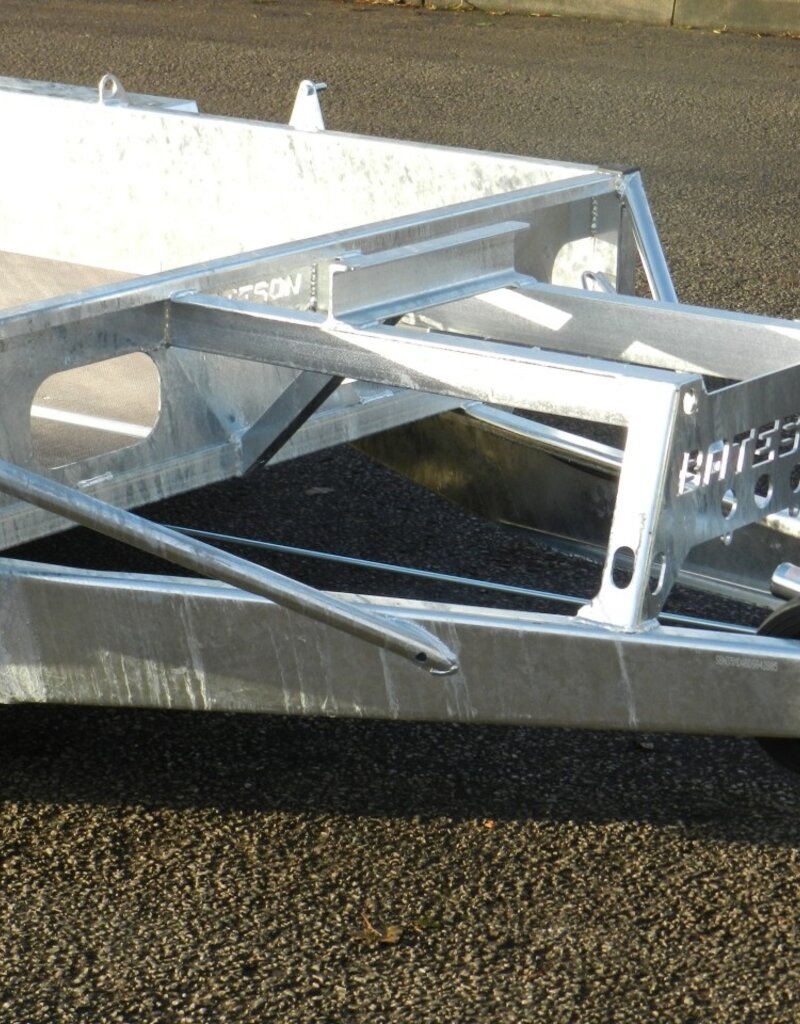

Model 35MD is a trailer designed to transport tracked machines up to 2775 kg. It is fabricated with a one piece heavy duty, hot dipped galvanised steel chassis with integral welded steel mudguards.It is supplied with solid steel sides to enable heavy machines to be secured to the hooks welded to the chassis and without a spare wheel as standard to keep the unladen weight to a minimum, allowing the heaviest possible machines to be carried within the maximum legal weight of 3500 kg. For wheeled machines we would recommend the TP range.

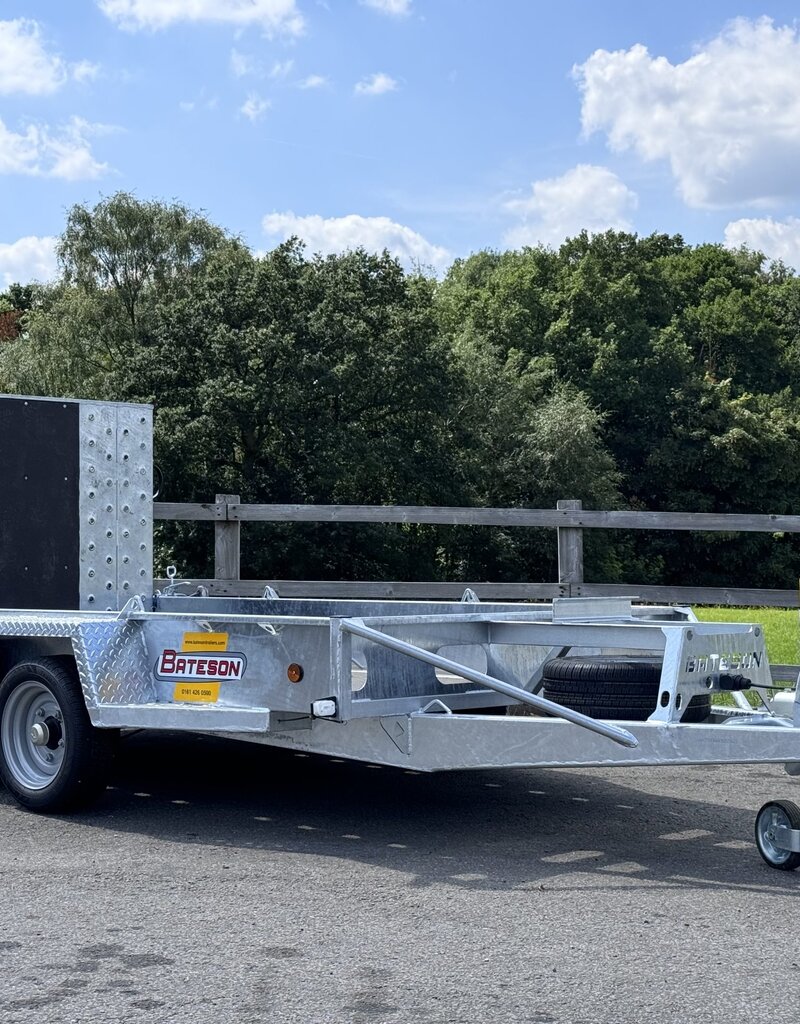

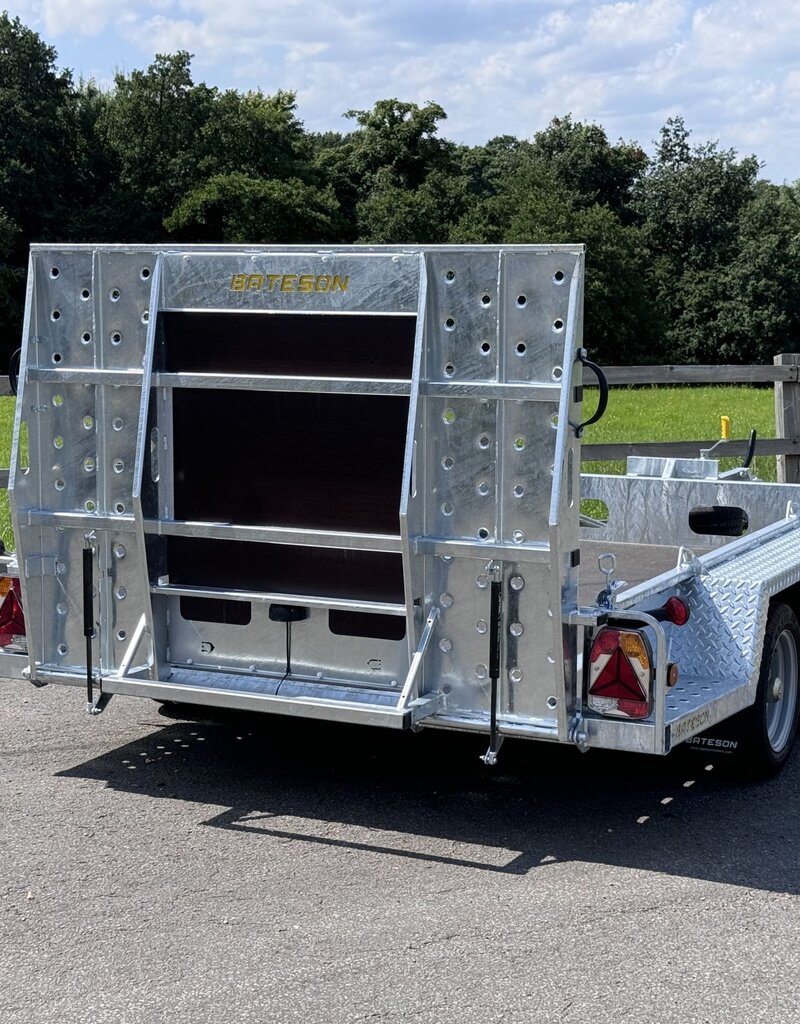

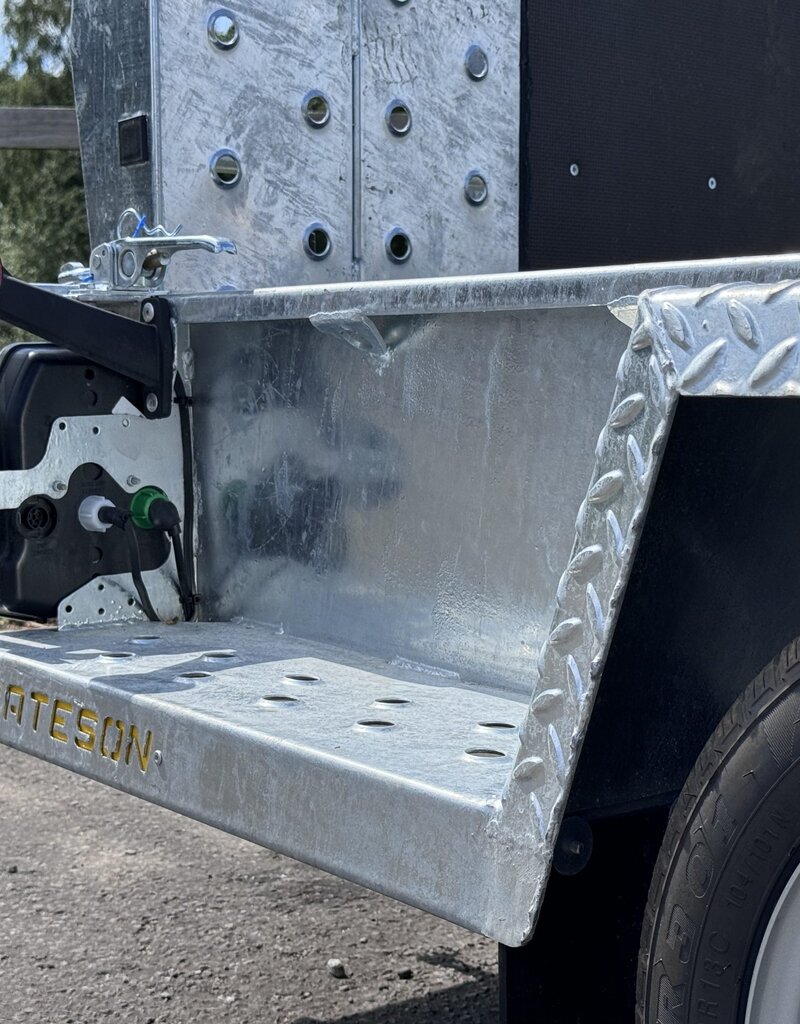

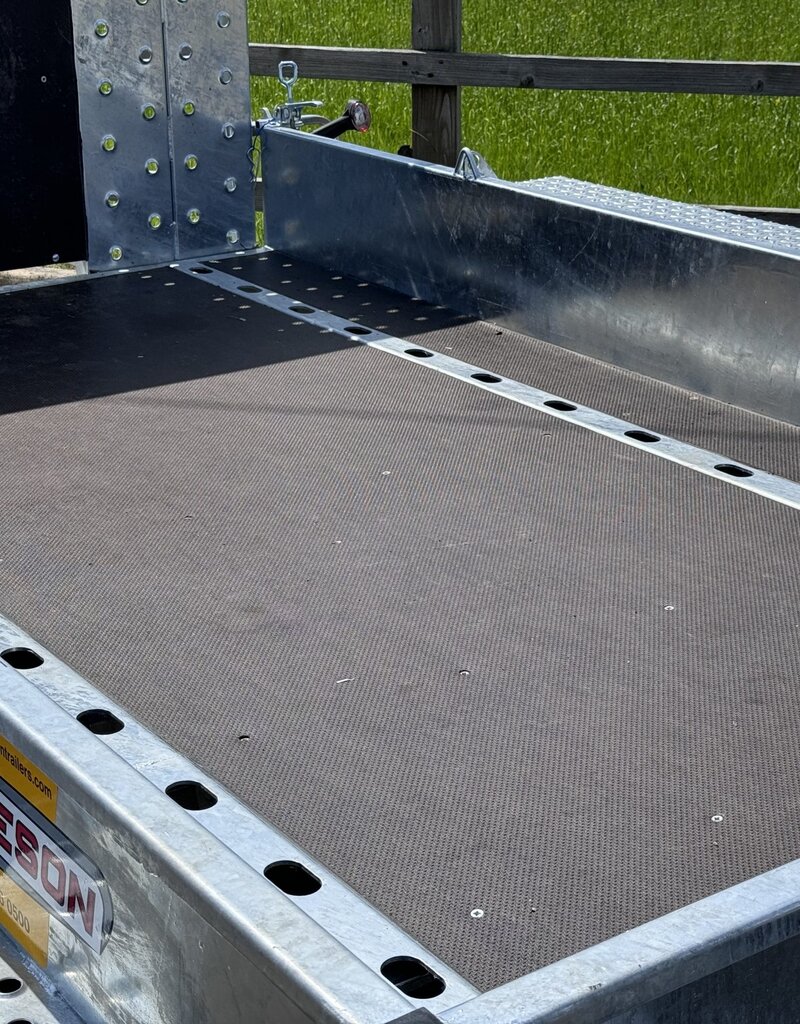

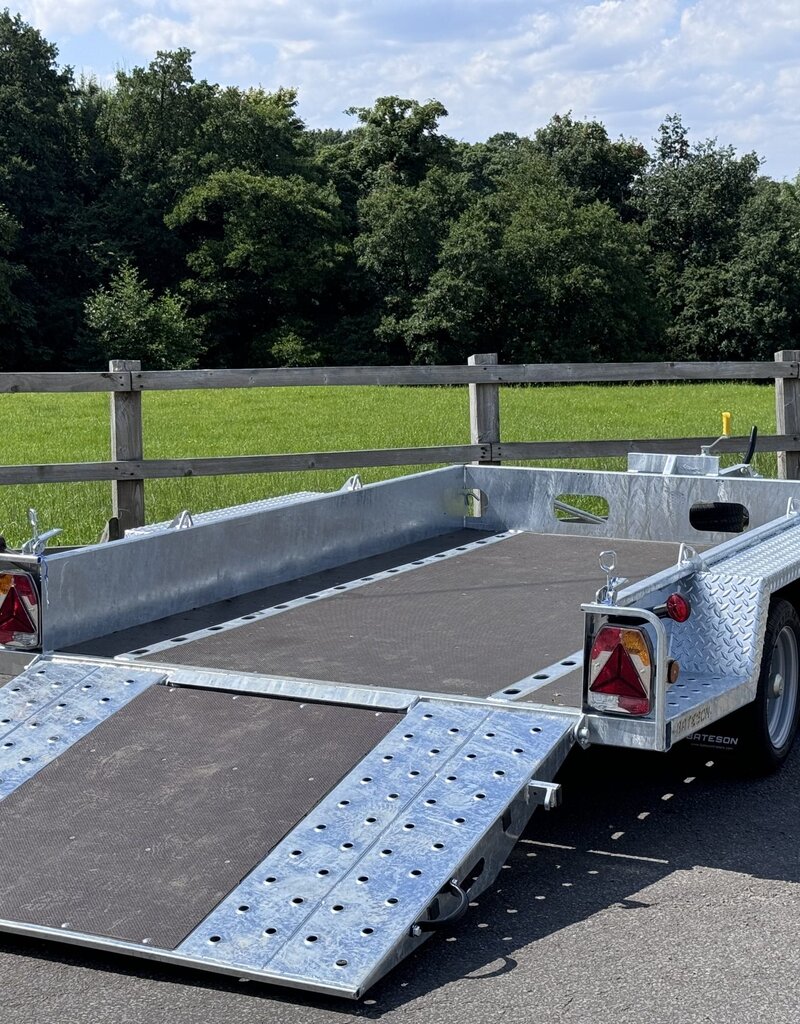

Model 35MD is fitted with a heavy duty full width gas assisted ramp door suitable for all types of machines including rollers, the ramp approach angle is 18 degrees. Standard equipment comprises an extended draw bar with a raised bucket carrier and hooks, a ribbed jockey wheel, ramp mounted legs, stand on mudguards, full width floor,road lights and a lockable 50 mm ball coupling. A pin type hitch is available as a free option. with the option of increased body length to 3600 mm. the unladen weight increases to 770 kg. reducing the payload to 2730 kg.
The trailer can be manufactured with an open centre floor and separate hinged ramps, reducing the un laden weight to 665 kg. allowing a maximum payload of 2835 kg.
Trailer Weight And Capacity (KG)Gross Weight
3500
Unladen Weight
725
Capacity
2775
Overall Dimensions (MM)Length
4860
Width
2160
Height
0
Internal Dimensions (MM)Length
3030
Width
1680
Height
0
Additional InformationTyre Size
195 - 50 x 13
Tow Ball Height
450mm
