| Article number: | 353H |
| Availability: | Available |
10' x 6'6 3.5 ton Hydraulic Tipping Trailer

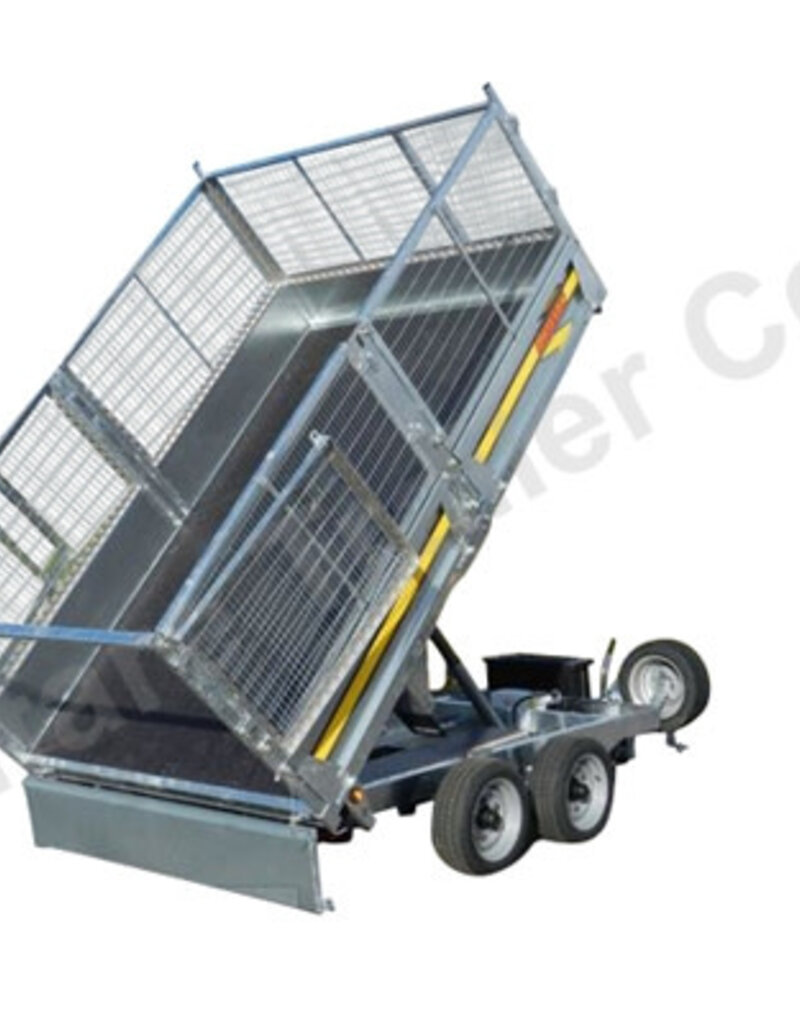

Model Shown with additional extra Side extensions
Mesh side Extensions £570 + Vat
Pair of 1.8m Ramps £400 + Vat
353H is Bateson's largest tipping trailer, At the legal maximum 3500 kg it has a good capacity. The 10 feet long body, 6 feet 6 inches wide is very stable when tipped and does not put too much load on the back of the trailer, lifting the towing vehicle, This trailer is standard with 12" steel sides and spare wheel

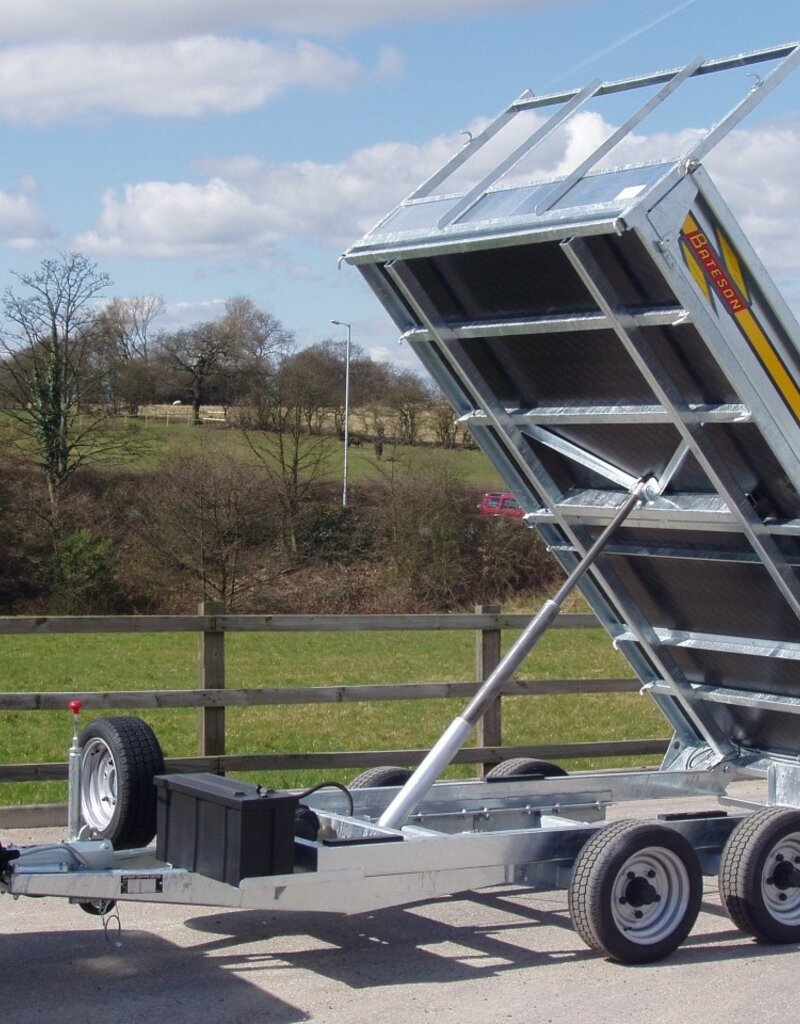

Twin 1800 kg Avonride axles have large 250 mm auto-reversing brakes and low profile 195 x 13 tyres offering a low centre of gravity and low loading height. The trailer is tipped by a two stage cylinder operated by a 12v electric pump with a remote control stored in a lockable battery box.
The trailer battery can be charged from the towing vehicle via the optional grey 7 pin auxiliary plug or from the power pin on a 13 pin plug.
30 cm steel hinged sides and a spare wheel are standard, mesh extension sides with split opening sides and twin rear gates are available as an option.
Trailer Weight And Capacity (KG)
Gross Weight
3500
Unladen Weight
860
Capacity
2640
Overall Dimensions (MM)
Length
4250
Width
2000
Internal Dimensions (MM)
Length
3000
Width
2000
Height
300
Additional Information
Tyre Size
195 - 50 x 13
Tow Ball Height
450
